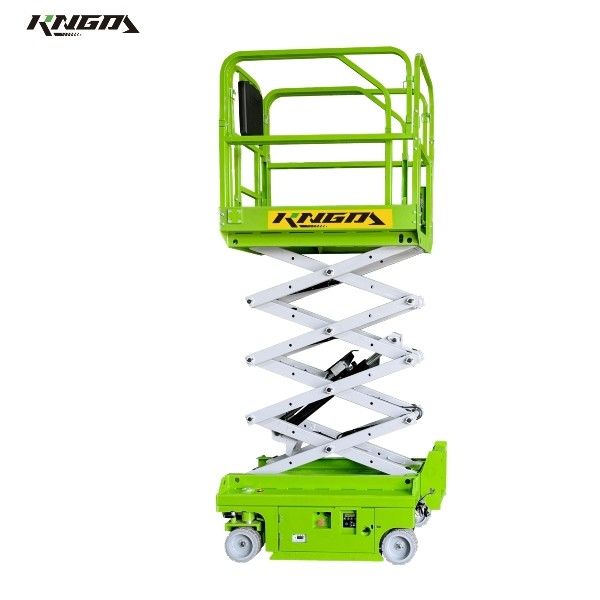

Self-propelled Scissor Lift Working Height 6M Drive Speed 0.8Km/h
Product Main Features
1. The machine adopts advanced electrophoresis treatment to provide unparalleled anti-corrosion capabilities, making it stand out among similar products.
2. Improve your operation by increasing the working height, which is easily achieved using the same number of wishbones.
3. Electric driving and braking are used for a seamless journey, ensuring a smoother and more stable experience.
4. Unleash maximum efficiency and optimize equipment performance with a dual-load system.
5. Streamline your workflow with standard forklift holes and specially designed lifting points to make equipment loading and unloading a breeze.
6. A carefully crafted centre wishbone design redefines stability and comfort, enhancing the overall platform experience.
7. Key components are reinforced with high-strength steel, significantly increasing the strength and robustness of the machine.

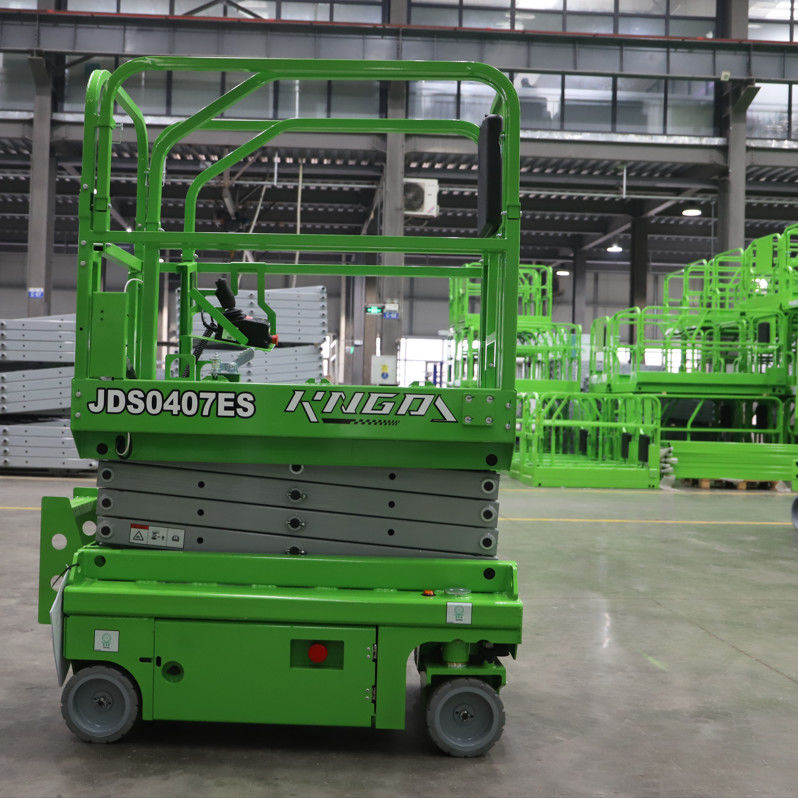

MODEL | JDS0407ES |
Size | Metric |
Maximum Working Height | 5.9m |
Maximum Platform Height | 3.9m |
Platform Height-Stowed | 0.94m |
Platform Length | 1.3m |
Length Extended | 1.9m |
Platform Width | 0.72m |
Rail Height | 1.1m |
Height-Stowed (Rail unfolded) | 1.9m |
Height-Stowed (Rail folded) | / |
Length-Stowed | 1.43m |
Width | 0.76m |
Wheelbase | 1m |
Ground Clearance (Pothole protection lay down) | 0.02m |
Ground Clearance Center | / |
Performance | / |
Platform Occupancy(indoor/outdoor) | 2/1 |
Wind Speed | 12.5m/s |
Platform Capacity | 240Kg |
Extension Platform Capacity | 100Kg |
Drive Speed-Stowed | 4.5Km/h |
Drive Speed-Raised | 0.8Km/h |
Grade ability-Stowed | 25% |
Min Turning Radius-inside | 0.4m |
Min Turning Radius-outside | 1.55m |
Raise/Lower Speed | 20s/24s |
Controls | Proportional control |
Drive | 2-Rear wheels |
Tyre Size | 0.23mx0.08m |
Power | |
Power Supply | 24V DC 2×12V Battery |
Hydraulic Reservoir Capacity | 6L |
Sound & Vibration | |
Sound Pressure Level(ground) | <70dB |
Sound Pressure Level(platform) | <70dB |
Vibration | 2.5m/s² |
Machine Weight | 830kg |
Standards Compliance | EN280 GB/T 25849 |
Standard Configuration | |
Proportional control | Emergency descent system |
Bidirectional extension platform | Automatic braking system |
Emergency stop system | Safety maintenance bracing piece |
Platform self-locking door | 4X2 Double frontal wheel electric drive |
Smart charger | Maintenance Free battery |
Action buzzer | Standard transport forklift holes |
Oil tube explosion-proof system | Solid traceless tyres |
Stroboscope light | Horn |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
