8.1M Self Propelled Man Lift Machine Weight 2200kg

8.1M Self Propelled Man Lift Machine Weight 2200kg

  • High Light

    8.1M self propelled man lift


    man lift Machine Weight 2200kg


    scissor lift self propelled

  • Emergency Stop
  • Power Source
  • Safety Features
    Overload Protection, Tilt Alarm, Emergency Lowering
  • Warranty
    One Year
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 UNIT
  • Price
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
  • Supply Ability

8.1M Self Propelled Man Lift Machine Weight 2200kg


  Self-propelled Scissor Lift Machine Weight 2200kg Platform Height 8.1M




  Product Main Features


  1. A self-propelled scissor lift stands as a remarkable piece of equipment, showcasing its prowess in elevating individuals and objects to soaring heights.

  2. The standout feature lies in its innovative scissor-style mechanism, enabling a seamless ascent and descent on a sturdy platform.

  3. What truly sets it apart is its autonomous mobility, driven by an inbuilt motor and robust wheels, granting it the freedom to traverse with ease.

  4. Crafted with precision, this machinery boasts unparalleled controllability and manoeuvrability, empowering workers to navigate vertiginous landscapes with utmost safety and efficacy.

  5. Its utilization extends across various sectors, from construction to maintenance, catering to industries that demand meticulous attention to elevated tasks

8.1M Self Propelled Man Lift Machine Weight 2200kg 0

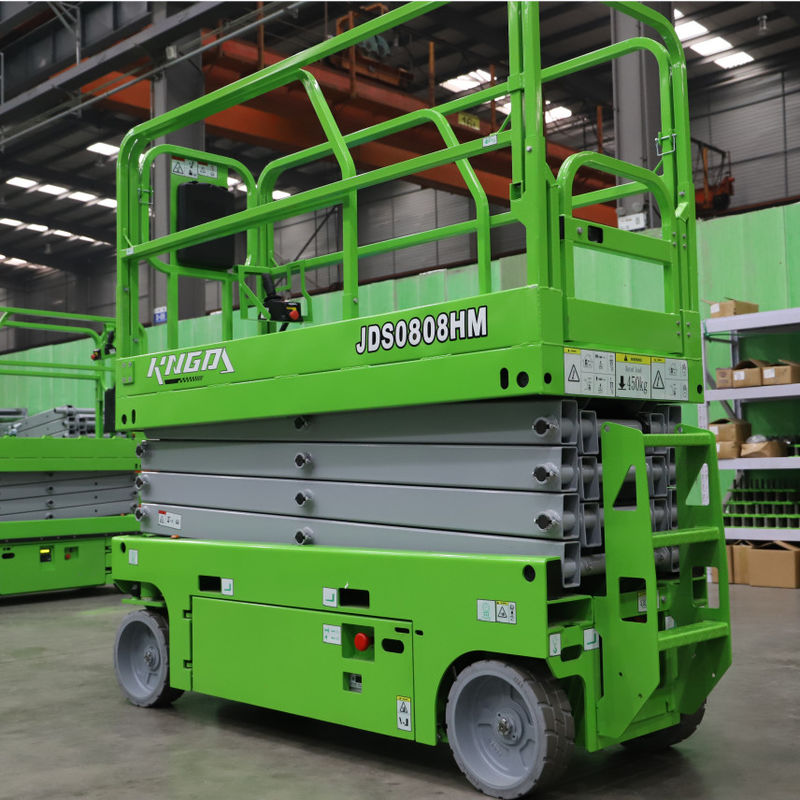

Model JDS0808HM
Size Metric
Maximum Working Height 10.1m
A)Maximum Platform Height 8.1m
B)Platform Height-Stowed 1.25m
C) Platform Length 2.29m
Length Extended 3.2m
D) Platform Width 0.8m
Rail Height 1.1m
E) Height-Stowed (Rail unfolded) 2.35m
Height-Stowed (Rail folded) 1.82m
F) Length-Stowed 2.47m
Width 1.15m
Wheelbase 1.87m
Ground Clearance (Pothole protection lay down) 0.02m
Ground Clearance Center 0.09m
Platform Occupancy(indoor/outdoor) 2/1
Wind Speed 12.5m/s
Platform Capacity 450Kg
Extension Platform Capacity 120Kg
Drive Speed-Stowed 3.5Km/h
Drive Speed-Raised 0.8Km/h
Grade ability-Stowed 25%
Min Turning Radius-inside 0m
Min Turning Radius-outside 2.1m
Raise/Lower Speed 40s/50s
Controls Proportional control
Drive 2-Front wheels
Tyre Size 0.381mx0.127m
Power Supply 24V DC 4x6V Battery
Hydraulic Reservoir Capacity 20L
Sound &Vibration
Sound Pressure Level(ground) <70dB
Sound Pressure Level(platform) <70dB
Vibration 2.5m/s²
Machine Weight 2200kg
Standards Compliance EN280 GB/T 25849


Standard Configuration
Proportional control Emergency descent system Action buzzer
Bidirectional extension platform Safety maintenance-bracing piece Emergency stop system
Folding fence platform 4X2 Double frontal wheel electric drive Automatic braking system
Platform self-locking door Smart charger Charging protection system
Fault diagnosis system Standard transport forklift holes Stroboscope light
Oil tube explosion-proof system Solid traceless tyres Tilt protection system
Maintenance Free battery Horn


※ The picture and technical information may vary by the update policy, the changes will be without prior notice.






Company Profile


JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products, and our mission is to terminate hazardous aerial work company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.

8.1M Self Propelled Man Lift Machine Weight 2200kg 1
