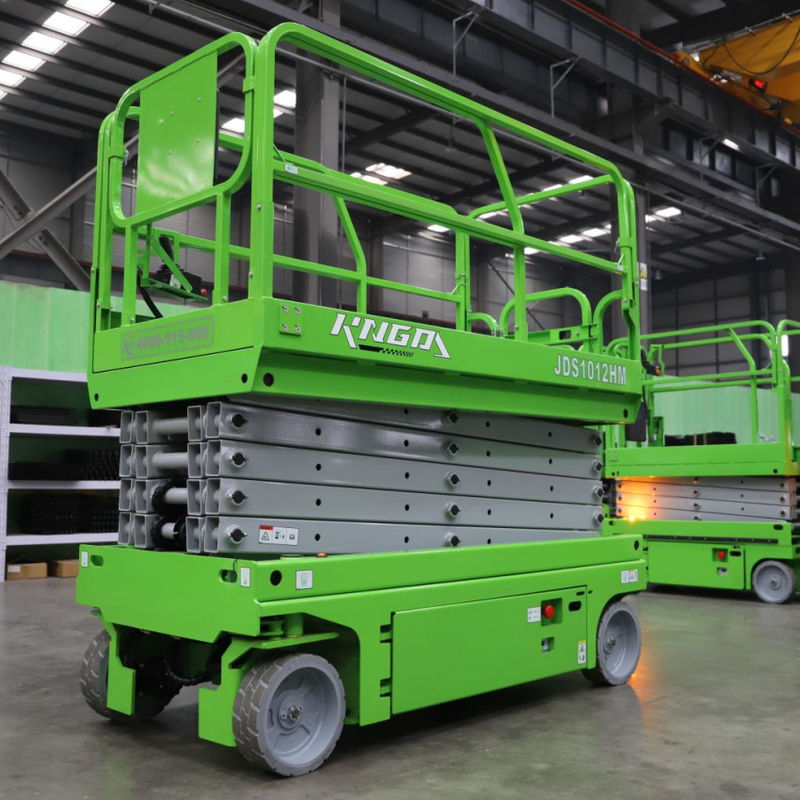

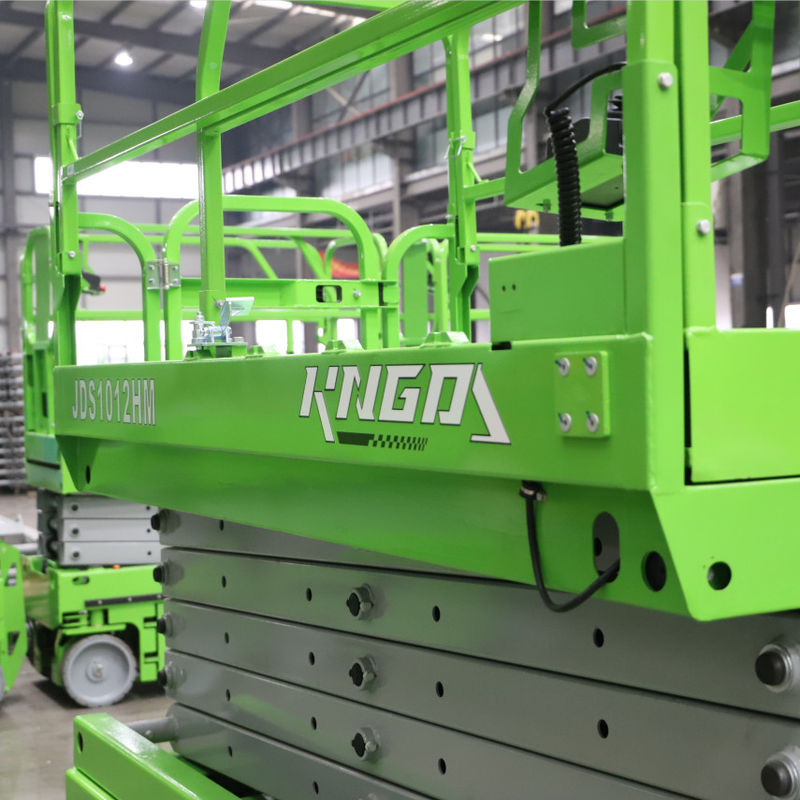

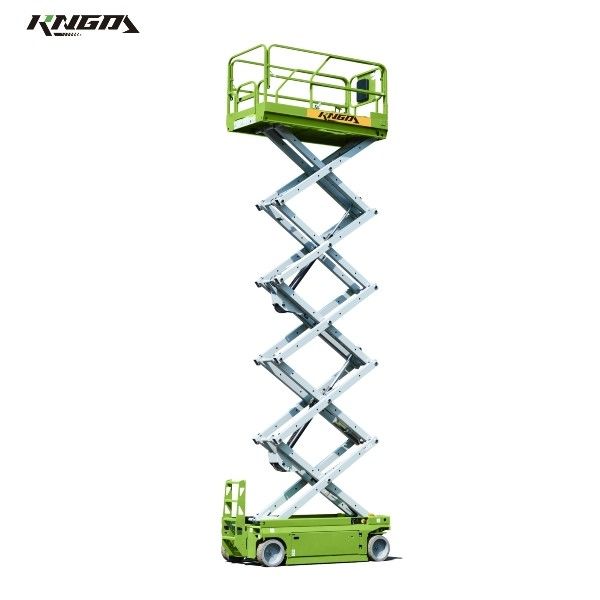

MEWP DC 24V Self-Propelled Scissor Lift 12 Meter Working Height


Self-propelled Scissor Lift Working Height 12.0m



Product Features


1. A self-propelled scissor lift is a remarkable piece of machinery that effortlessly elevates you to towering heights.

2. With its innovative scissor-like mechanism, this equipment ascends and descends smoothly, thanks to the power of its engine.

3. Forget about manual labour – this marvel of engineering moves autonomously, gliding effortlessly to various spots with ease.

4. Ensuring your safety and stability at all times, the scissor lift boasts a robust foundation and protective guardrails while you tackle tasks atop the platform.

5. Ideal for painting, maintenance, or construction endeavours requiring access to lofty perches, this machine is a game-changer in reaching elevated work areas.


MEWP DC 24V Self-Propelled Scissor Lift 12 Meter Working Height 0


Standard Configuration
Proportional control Emergency descent system Action buzzer
Bidirectional extension platform Safety maintenance bracing piece Emergency stop system
Folding fence platform 4X2 Double frontal wheel electric drive Automatic braking system
Platform self-locking door Smart charger Charging protection system
Fault diagnosis system Standard transport forklift holes Stroboscope light
Oil tube explosion-proof system Solid traceless tyres Tilt protection system
Maintenance Free battery Horn


Model JDS1012HM
Size Metric
Maximum Working Height 12.0m
A)Maximum Platform Height 10.0m
B)Platform Height-Stowed 1.37m
C) Platform Length 2.3m
Length Extended 3.2m
D) Platform Width 1.14m
Rail Height 1.1m
E) Height-Stowed (Rail unfolded) 2.47m
Height-Stowed (Rail folded) 1.94m
F) Length-Stowed 2.47m
Width 1.15m
Wheelbase 1.87m
Ground Clearance (Pothole protection lay down) 0.02m
Ground Clearance Center 0.09m
Platform Occupancy(indoor/outdoor) 2/1
Wind Speed 12.5m/s
Platform Capacity 320Kg
Extension Platform Capacity 120Kg
Drive Speed-Stowed 3.5Km/h
Drive Speed-Raised 0.8Km/h
Grade ability-Stowed 25%
Min Turning Radius-inside 0m
Min Turning Radius-outside 2.1m
Raise/Lower Speed 60s/57s
Controls Proportional control
Drive 2-Front wheels
Tyre Size 0.323mx0.1m
Power Supply 24V DC 4x6V Battery
Hydraulic Reservoir Capacity 20L
Sound &Vibration
Sound Pressure Level(ground) <70dB
Sound Pressure Level(platform) <70dB
Vibration 2.5m/s²
Machine Weight 3048kg
Standards Compliance EN280 GB/T 25849


MEWP DC 24V Self-Propelled Scissor Lift 12 Meter Working Height 1


※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
