Self Propelled Mobile Scissor Lift Table Platform Height 10m Manlift MEWP
-
High Light
self propelled mobile scissor lift table
,mobile scissor lift table 10m
,scissor lift 10m
-
Gradeability25%
-
Platform Capacity120kg
-
Place of OriginCHINA
-
Brand NameKINGDA
-
CertificationCE
-
Model NumberJDS1012HM
-
Minimum Order Quantity1 UNIT
-
Price（TBD）USD
-
Packaging DetailsExport packing
-
Delivery Time60 Days
-
Payment TermsT/T
-
Supply AbilityNO LIMITED

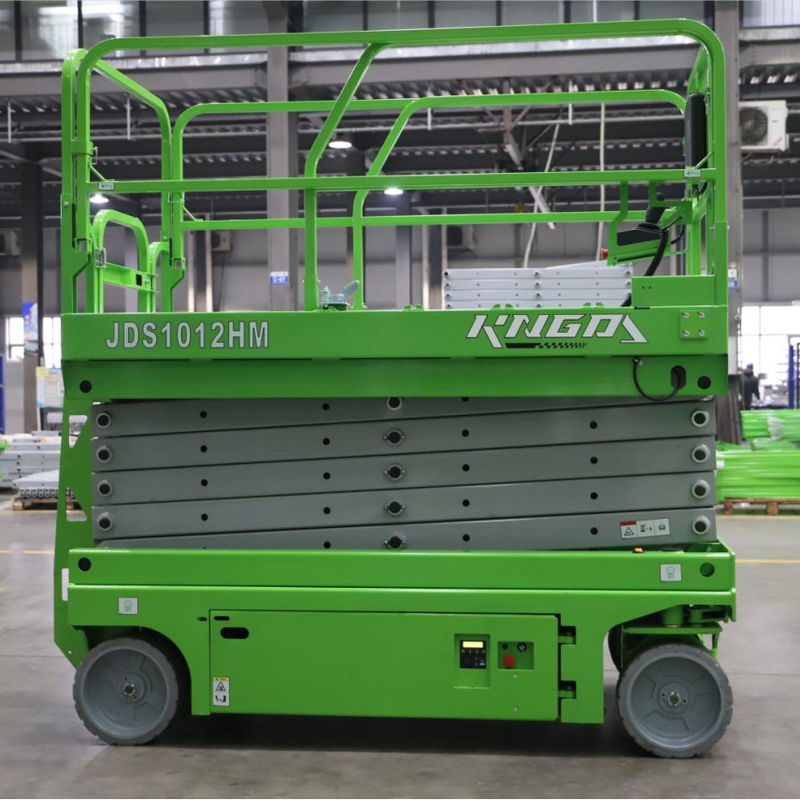

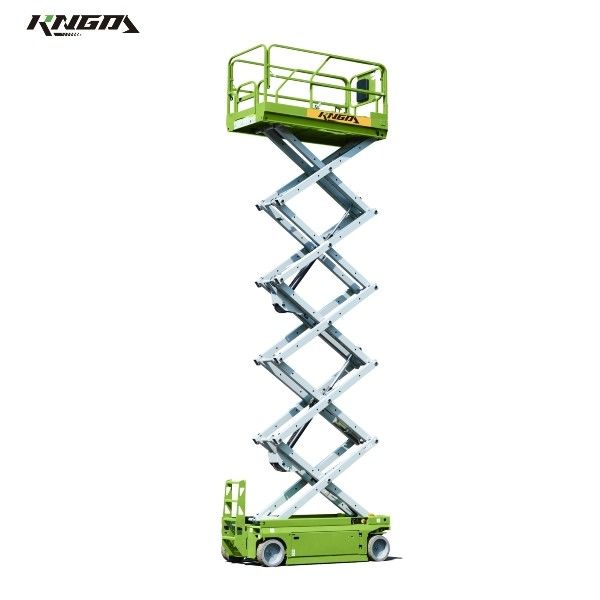

Self Propelled Mobile Scissor Lift Table Platform Height 10m Manlift MEWP
Self-propelled Scissor Lift Platform Height 10m
Product Features
1. An extraordinary self-propelled scissor lift is a groundbreaking machine that elevates you to towering heights with unparalleled safety measures. The innovative design incorporates a spacious platform for your footing, utilizing a sophisticated scissor-like mechanism for seamless ascents and descents.
2. What sets this lift apart is its autonomous mobility, eliminating the need for manual exertion. It manoeuvres effortlessly without external assistance, granting you a hands-free experience unlike any other.
3. Equipped with swift wheels, this marvel effortlessly transitions between diverse locations, streamlining tasks such as illuminating fixtures, adorning walls with vibrant hues, or engaging in intricate construction endeavours.
4. Steering this marvel is a breeze, thanks to user-friendly controls like responsive buttons or a nimble joystick, allowing for precise navigation in all orientations. Safety is paramount, with robust guardrails and instant emergency halt options ensuring your well-being as you operate at elevated altitudes.
| Standard Configuration | ||
| Proportional control | Emergency descent system | Action buzzer |
| Bidirectional extension platform | Safety maintenance bracing piece | Emergency stop system |
| Folding fence platform | 4X2 Double frontal wheel electric drive | Automatic braking system |
| Platform self-locking door | Smart charger | Charging protection system |
| Fault diagnosis system | Standard transport forklift holes | Stroboscope light |
| Oil tube explosion-proof system | Solid traceless tyres | Tilt protection system |
| Maintenance Free battery | Horn | |
| Model | JDS1012HM |
| Size | Metric |
| Maximum Working Height | 12.0m |
| A)Maximum Platform Height | 10.0m |
| B)Platform Height-Stowed | 1.37m |
| C) Platform Length | 2.3m |
| Length Extended | 3.2m |
| D) Platform Width | 1.14m |
| Rail Height | 1.1m |
| E) Height-Stowed (Rail unfolded) | 2.47m |
| Height-Stowed (Rail folded) | 1.94m |
| F) Length-Stowed | 2.47m |
| Width | 1.15m |
| Wheelbase | 1.87m |
| Ground Clearance (Pothole protection lay down) | 0.02m |
| Ground Clearance Center | 0.09m |
| Performance | |
| Platform Occupancy(indoor/outdoor) | 2/1 |
| Wind Speed | 12.5m/s |
| Platform Capacity | 320Kg |
| Extension Platform Capacity | 120Kg |
| Drive Speed-Stowed | 3.5Km/h |
| Drive Speed-Raised | 0.8Km/h |
| Grade ability-Stowed | 25% |
| Min Turning Radius-inside | 0m |
| Min Turning Radius-outside | 2.1m |
| Raise/Lower Speed | 60s/57s |
| Controls | Proportional control |
| Drive | 2-Front wheels |
| Tyre Size | 0.323mx0.1m |
| Power | |
| Power Supply | 24V DC 4x6V Battery |
| Hydraulic Reservoir Capacity | 20L |
| Sound &Vibration | |
| Sound Pressure Level(ground) | <70dB |
| Sound Pressure Level(platform) | <70dB |
| Vibration | 2.5m/s² |
| Machine Weight | 3048kg |
| Standards Compliance | EN280 GB/T 25849 |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
