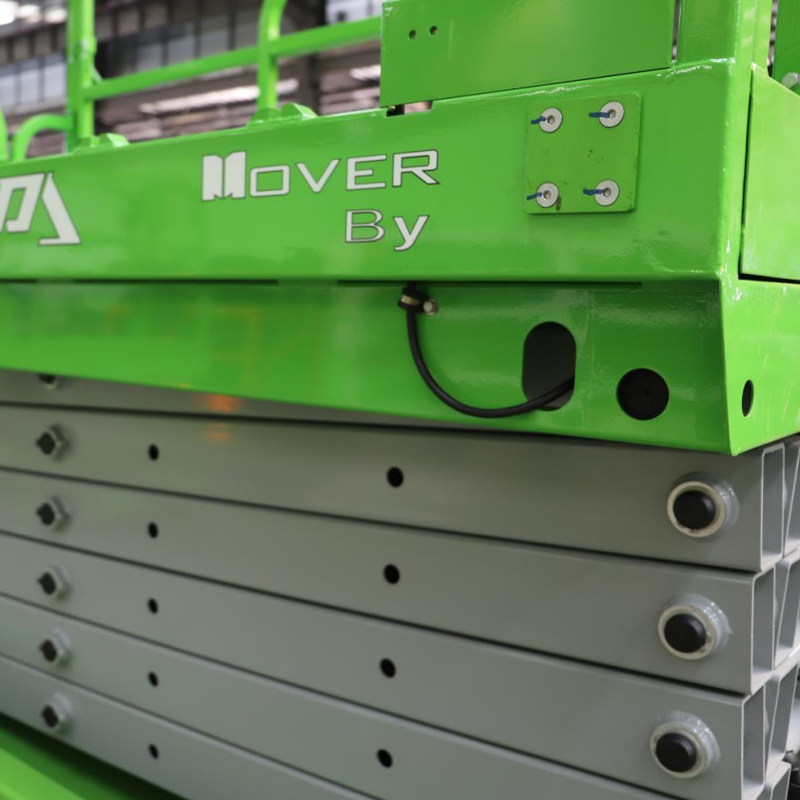

Self Propelled Lifting Platform 3200kg 16m

Self Propelled Lifting Platform 3200kg 16m

Products - Self-propelled Scissor Lift
  • Highlight

    self propelled lifting platform 3200kg

    ,

    self propelled lifting platform 16m

    ,

    16m self propelled lifting

  • Platform Capacity
    320kg
  • Warranty
    One Year
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    JDS1414HM
  • Minimum Order Quantity
    1 UNIT
  • Price
    （TBD）USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

Self Propelled Lifting Platform 3200kg 16m

  • Self Propelled Lifting Platform 3200kg 16m
  • Self Propelled Lifting Platform 3200kg 16m
  • Self Propelled Lifting Platform 3200kg 16m
  • Self Propelled Lifting Platform 3200kg 16m
Get Price Contact Now



Self-propelled Scissor Lift Weight 3200kg Working Height 16m







Product Features



●Mobility: These lifts can move on their own with wheels or tracks, making them easy to manoeuvre around a worksite.
●Height adjustment: The scissor-like mechanism allows the platform to be raised or lowered to reach different heights.
●Stability: Self-propelled scissor lifts are designed with stability in mind. They typically have wide bases and outriggers to ensure balance and prevent tipping.
●Easy to control: Operating a self-propelled scissor lift is relatively simple, with controls that are easy to understand and use.
●Overall, these lifts are a convenient and safe option for lifting people or objects to higher places in construction or maintenance work.



Self Propelled Lifting Platform 3200kg 16m 0



Model JDS1414HM
Size Metric
Maximum Working Height 16.0m
A)Maximum Platform Height 14.0m
B)Platform Height-Stowed 1.5m
C) Platform Length 2.3m
Length Extended 3.2m
D) Platform Width 1.14m
Rail Height 1.1m
E) Height-Stowed (Rail unfolded) 2.60m
Height-Stowed (Rail folded) 2.07m
F) Length-Stowed 2.47m
Width 1.39m
Wheelbase 1.87m
Ground Clearance (Pothole protection lay down) 0.02m
Ground Clearance Center 0.09m
Performance
Platform Occupancy(indoor/outdoor) 2/1
Wind Speed 12.5m/s
Platform Capacity 320Kg
Extension Platform Capacity 120Kg
Drive Speed-Stowed 3.5Km/h
Drive Speed-Raised 0.8Km/h
Grade ability-Stowed 25%
Min Turning Radius-inside 0m
Min Turning Radius-outside 2.1m
Raise/Lower Speed 64s/67s
Controls Proportional control
Drive 2-Front wheels
Tyre Size 0.381mx0.127m
Power
Power Supply 24V DC 4x6V Battery
Hydraulic Reservoir Capacity 20L
Sound &Vibration
Sound Pressure Level(ground) <70dB
Sound Pressure Level(platform) <70dB
Vibration 2.5m/s²
Machine Weight 3200kg
Standards Compliance
EN280 GB/T 25849



Standard Configuration
Proportional control Emergency descent system Action buzzer
Bidirectional extension platform Safety maintenance bracing piece Emergency stop system
Folding fence platform 4X2 Double frontal wheel electric drive Automatic braking system
Platform self-locking door Smart charger Charging protection system
Fault diagnosis system Standard transport forklift holes Stroboscope light
Oil tube explosion-proof system Solid traceless tyres Tilt protection system
Maintenance Free battery Horn



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.









Company Profile



JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
