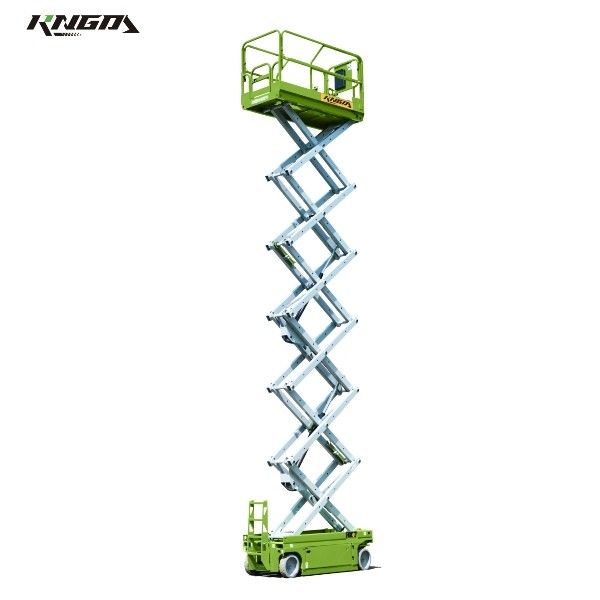

Platform Height 14m Scissor Lift Load Capacity 320kg
Product Features
1. Self-propelled scissor lift is a mobile device that elevates individuals or objects to elevated locations.
2. Its platform ascends and descends through the utilization of a scissor-type mechanism.
3. It can move on its own with wheels or tracks, which makes it easy to use.
4. It has safety features like guardrails and emergency stop buttons to keep people safe when working at heights.
Model | JDS1414HM |
Size | Metric |
Maximum Working Height | 16.0m |
A)Maximum Platform Height | 14.0m |
B)Platform Height-Stowed | 1.5m |
C) Platform Length | 2.3m |
Length Extended | 3.2m |
D) Platform Width | 1.14m |
Rail Height | 1.1m |
E) Height-Stowed (Rail unfolded) | 2.60m |
Height-Stowed (Rail folded) | 2.07m |
F) Length-Stowed | 2.47m |
Width | 1.39m |
Wheelbase | 1.87m |
Ground Clearance (Pothole protection lay down) | 0.02m |
Ground Clearance Center | 0.09m |
Performance | |
Platform Occupancy(indoor/outdoor) | 2/1 |
Wind Speed | 12.5m/s |
Platform Capacity | 320Kg |
Extension Platform Capacity | 120Kg |
Drive Speed-Stowed | 3.5Km/h |
Drive Speed-Raised | 0.8Km/h |
Grade ability-Stowed | 25% |
Min Turning Radius-inside | 0m |
Min Turning Radius-outside | 2.1m |
Raise/Lower Speed | 64s/67s |
Controls | Proportional control |
Drive | 2-Front wheels |
Tyre Size | 0.381mx0.127m |
Power | |
Power Supply | 24V DC 4x6V Battery |
Hydraulic Reservoir Capacity | 20L |
Sound &Vibration | |
Sound Pressure Level(ground) | <70dB |
Sound Pressure Level(platform) | <70dB |
Vibration | 2.5m/s² |
Machine Weight | 3200kg |
Standards Compliance | |
EN280 GB/T 25849 |
Standard Configuration | ||
Proportional control | Emergency descent system | Action buzzer |
Bidirectional extension platform | Safety maintenance bracing piece | Emergency stop system |
Folding fence platform | 4X2 Double frontal wheel electric drive | Automatic braking system |

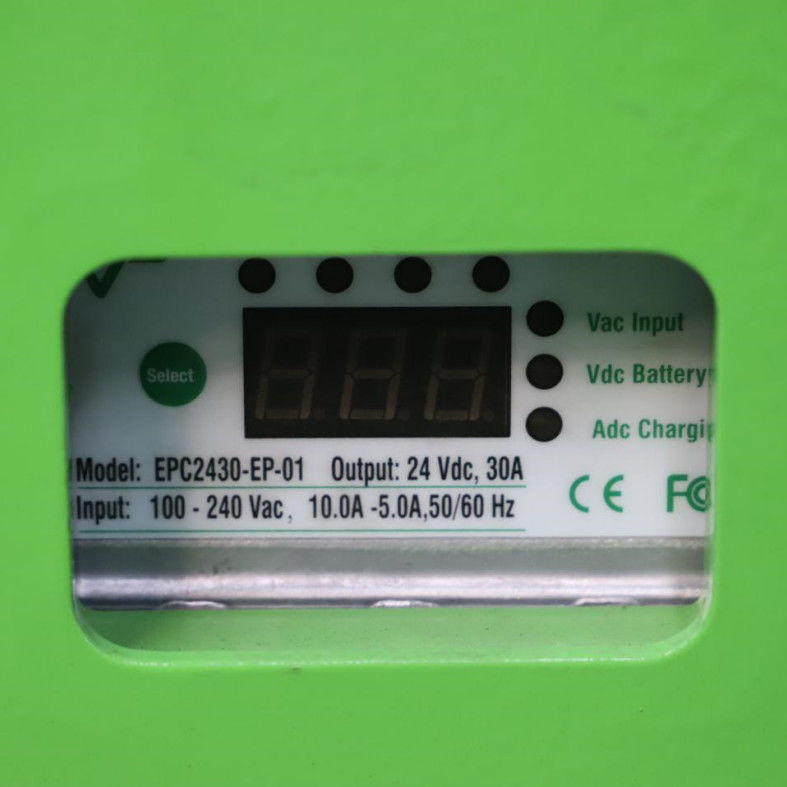

Platform self-locking door | Smart charger | Charging protection system |
Fault diagnosis system | Standard transport forklift holes | Stroboscope light |
Oil tube explosion-proof system | Solid traceless tyres | Tilt protection system |
Maintenance Free battery | Horn |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
