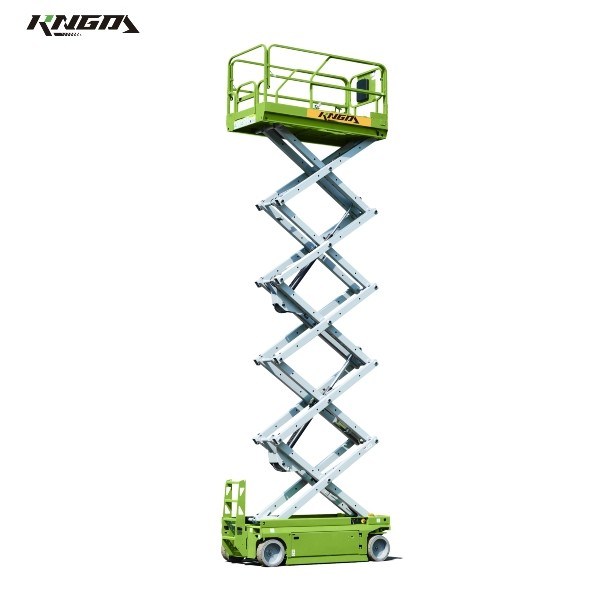

Rough Terrain Scissor Lift Raise/Lower Speed 40s/50s 10.1m

Rough Terrain Scissor Lift Raise/Lower Speed 40s/50s 10.1m

Products - Self-propelled Scissor Lift
  • High Light

    50s Rough Terrain Scissor Lift

    ,

    10.1m Rough Terrain Scissor Lift

    ,

    40s Rough Terrain Scissor Lift

  • Platform Length
    2.29m
  • Power Supply
    24V DC 4x6V Battery
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    JDS0808HM
  • Minimum Order Quantity
    1 UNIT
  • Price
    （TBD）USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

Rough Terrain Scissor Lift Raise/Lower Speed 40s/50s 10.1m

  • Rough Terrain Scissor Lift Raise/Lower Speed 40s/50s 10.1m
  • Rough Terrain Scissor Lift Raise/Lower Speed 40s/50s 10.1m
  • Rough Terrain Scissor Lift Raise/Lower Speed 40s/50s 10.1m
  • Rough Terrain Scissor Lift Raise/Lower Speed 40s/50s 10.1m
  • Rough Terrain Scissor Lift Raise/Lower Speed 40s/50s 10.1m
  • Rough Terrain Scissor Lift Raise/Lower Speed 40s/50s 10.1m
  • Rough Terrain Scissor Lift Raise/Lower Speed 40s/50s 10.1m
Get Price Contact Now

Rough Terrain Scissor Lift, Raise/Lower Speed 40s/50s,10.1m





Product Main Features



1. The machine's structural components undergo electrophoresis treatment, endowing it with superior anti-corrosion capabilities compared to its competitors.

2. The hydraulic travel system enables greater working heights without compromising on fork arm quantity, incorporating a balance valve for secure braking during movement.

3. Featuring a dual load system, this machine optimizes efficiency with standard forklift holes and specialized lifting points for easy equipment handling.

4. The central fork arm design not only improves stability but also enhances user comfort, elevating the overall platform experience.

5. By utilizing high-strength steel in key areas, this machine achieves unparalleled durability and strength within its class.

Rough Terrain Scissor Lift Raise/Lower Speed 40s/50s 10.1m 0



Model JDS0808HM
Size Metric
Maximum Working Height 10.1m
A)Maximum Platform Height 8.1m
B)Platform Height-Stowed 1.25m
C) Platform Length 2.29m
Length Extended 3.2m
D) Platform Width 0.8m
Rail Height 1.1m
E) Height-Stowed (Rail unfolded) 2.35m
Height-Stowed (Rail folded) 1.82m
F) Length-Stowed 2.47m
Width 1.15m
Wheelbase 1.87m
Ground Clearance (Pothole protection lay down) 0.02m
Ground Clearance Center 0.09m
Performance
Platform Occupancy(indoor/outdoor) 2/1
Wind Speed 12.5m/s
Platform Capacity 450Kg
Extension Platform Capacity 120Kg
Drive Speed-Stowed 3.5Km/h
Drive Speed-Raised 0.8Km/h
Grade ability-Stowed 25%
Min Turning Radius-inside 0m
Min Turning Radius-outside 2.1m
Raise/Lower Speed 40s/50s
Controls Proportional control
Drive 2-Front wheels
Tyre Size 0.381mx0.127m
Power
Power Supply 24V DC 4x6V Battery
Hydraulic Reservoir Capacity 20L
Sound &Vibration
Sound Pressure Level(ground) <70dB
Sound Pressure Level(platform) <70dB
Vibration 2.5m/s²
Machine Weight 2200kg
Standards Compliance EN280 GB/T 25849



Standard Configuration
Proportional control Emergency descent system Action buzzer
Bidirectional extension platform Safety maintenance-bracing piece Emergency stop system
Folding fence platform 4X2 Double frontal wheel electric drive Automatic braking system
Platform self-locking door Smart charger Charging protection system
Fault diagnosis system Standard transport forklift holes Stroboscope light
Oil tube explosion-proof system Solid traceless tyres Tilt protection system
Maintenance Free battery Horn

Rough Terrain Scissor Lift Raise/Lower Speed 40s/50s 10.1m 1



Company Profile



JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specializes in the research, manufacture, sales, and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products, and our mission is to terminate hazardous aerial work company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.

Rough Terrain Scissor Lift Raise/Lower Speed 40s/50s 10.1m 2
