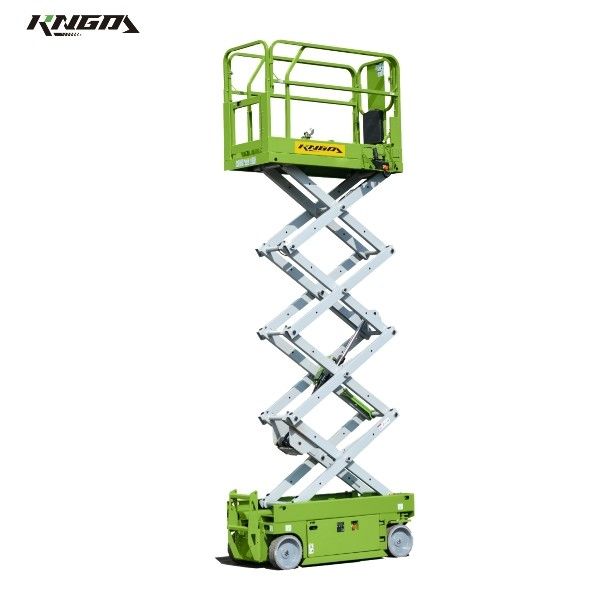

Wind Speed 12.5m/s Self Propelled Scissor Lift Maximum Platform Height 8.1m
-
High Light
24V DC Self propelled Scissor Lift
,8.1m Self propelled Scissor Lift
,12.5m/s Self propelled Scissor Lift
-
Extension Platform Capacity120Kg
-
Drive Speed-Stowed3.5Km/h
-
Place of OriginCHINA
-
Brand NameKINGDA
-
CertificationCE
-
Model NumberJDS0812HM
-
Minimum Order Quantity1 UNIT
-
Price（TBD）USD
-
Packaging DetailsExport packing
-
Delivery Time60 Days
-
Payment TermsT/T
-
Supply AbilityNO LIMITED
Wind Speed 12.5m/s Self Propelled Scissor Lift Maximum Platform Height 8.1m
Self-propelled Scissor Lift ,Maximum Platform Height 8.1m Wind Speed 12.5m/s
Product Main Features
1. By employing electrophoresis treatment on the machine's structural elements, it boasts unrivaled anti-corrosion capabilities, far surpassing those of its competitors.
2. The hydraulic travel system allows for increased working heights while maintaining the same number of fork arms. It incorporates a balance valve for secure and stable braking during travel.
3. Featuring a dual load system, this machine optimizes efficiency by providing both standard forklift holes and specialized lifting points for effortless equipment loading and unloading.
4. The central fork arm design not only enhances stability but also elevates user comfort, significantly improving the overall experience on the platform.
5. Through the strategic use of high-strength steel in critical areas, this machine achieves unmatched durability and strength within its class.
| Model | JDS0808HM |
| Size | Metric |
| Maximum Working Height | 10.1m |
| A)Maximum Platform Height | 8.1m |
| B)Platform Height-Stowed | 1.25m |
| C) Platform Length | 2.29m |
| Length Extended | 3.2m |
| D) Platform Width | 0.8m |
| Rail Height | 1.1m |
| E) Height-Stowed (Rail unfolded) | 2.35m |
| Height-Stowed (Rail folded) | 1.82m |
| F) Length-Stowed | 2.47m |
| Width | 1.15m |
| Wheelbase | 1.87m |
| Ground Clearance (Pothole protection lay down) | 0.02m |
| Ground Clearance Center | 0.09m |
| Performance | |
| Platform Occupancy(indoor/outdoor) | 2/1 |
| Wind Speed | 12.5m/s |
| Platform Capacity | 450Kg |
| Extension Platform Capacity | 120Kg |
| Drive Speed-Stowed | 3.5Km/h |
| Drive Speed-Raised | 0.8Km/h |
| Grade ability-Stowed | 25% |
| Min Turning Radius-inside | 0m |
| Min Turning Radius-outside | 2.1m |
| Raise/Lower Speed | 40s/50s |
| Controls | Proportional control |
| Drive | 2-Front wheels |
| Tyre Size | 0.381mx0.127m |
| Power | |
| Power Supply | 24V DC 4x6V Battery |
| Hydraulic Reservoir Capacity | 20L |
| Sound &Vibration | |
| Sound Pressure Level(ground) | <70dB |
| Sound Pressure Level(platform) | <70dB |
| Vibration | 2.5m/s² |
| Machine Weight | 2200kg |
| Standards Compliance | EN280 GB/T 25849 |
| Standard Configuration | ||
| Proportional control | Emergency descent system | Action buzzer |
| Bidirectional extension platform | Safety maintenance-bracing piece | Emergency stop system |
| Folding fence platform | 4X2 Double frontal wheel electric drive | Automatic braking system |
| Platform self-locking door | Smart charger | Charging protection system |
| Fault diagnosis system | Standard transport forklift holes | Stroboscope light |
| Oil tube explosion-proof system | Solid traceless tyres | Tilt protection system |
| Maintenance Free battery | Horn |
