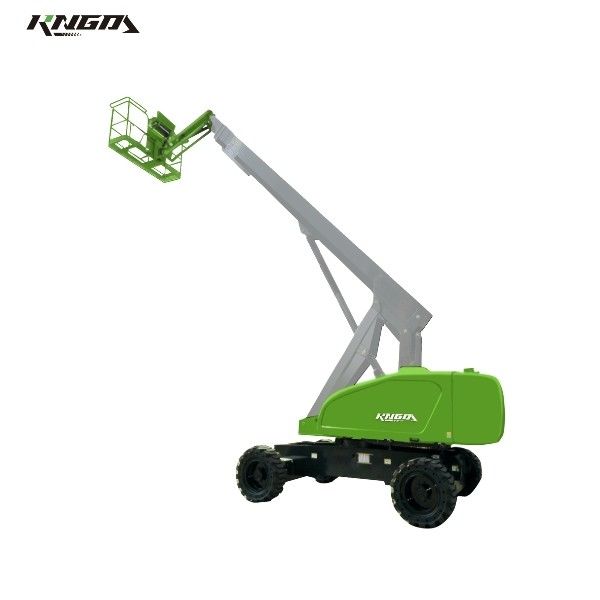

MEWP Load 230Kg Diesel Telescopic Boom Lift Platform Height 14m

MEWP Load 230Kg Diesel Telescopic Boom Lift Platform Height 14m

Products - Diesel Telescopic Boom Lift
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    TB14J
  • Minimum Order Quantity
    1 UNIT
  • Price
    （TBD）USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

MEWP Load 230Kg Diesel Telescopic Boom Lift Platform Height 14m

  • MEWP Load 230Kg Diesel Telescopic Boom Lift Platform Height 14m
  • MEWP Load 230Kg Diesel Telescopic Boom Lift Platform Height 14m
Get Price Contact Now



Diesel Telescopic Boom Lift Platform Height 14m Capacity 230Kg







Product Features



●The small-size diesel telescopic boom lift is equipped with a telescopic boom that allows for extended reach and height capabilities.
●One of the key features of this boom lift is its compact size, making it ideal for narrow or confined spaces where larger machines may not fit. Despite its small size, it offers a high lifting capacity and can reach heights up to 15.0m, providing access to elevated areas with ease.
●The boom lift is powered by a diesel engine, which ensures reliable performance and efficient operation.
●This boom lift is designed to be used in various environments, including construction sites, maintenance work, industrial facilities, and more. It is built to withstand tough conditions and has excellent corrosion resistance, ensuring long-lasting durability.
● It is equipped with safety features such as emergency stop buttons, overload protection, and safety harness attachment points. The operator's platform is spacious and equipped with guardrails for added protection.





MEWP Load 230Kg Diesel Telescopic Boom Lift Platform Height 14m 0

Model TB14J
Size Metric
Maximum Working Height 16m
Maximum Platform Height 14m
Maximum Horizontal Outreach 12.6m
Platform Size 1.83X0.76m
B)Length-Stowed 8.55m
Width-Stowed 2.38m
A)Height-Stowed 2.63m
Wheelbase 2.4m
Ground Clearance(Center) 0.42m
Performance
Maximum Lifting Capacity 230Kg
Maximum Platform Occupancy 2 ppl
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 355°
Drive Speed-Stowed 5km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope 5°
Turning Radius (inside) 1.87m
Turning Radius (outside) 4.9m
Drive &Steer Mode 4X4X2Tyre
e Size 33X12-20
Power
Power Supply 36Kw@2400rpm~2600rpm
Fuel Tank Capacity 151L
Hydraulic Oil Tank Capacity 160L
Control Voltage 12V
Weight
Machine Weight 7500Kg
Standard Compliance EN280 GB25849





※ The picture and technical information may vary by the update policy, the changes will be without prior notice.









Company Profile



JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
