16m Working Height Diesel Telescopic Boom Lift STAFF LIFT

16m Working Height Diesel Telescopic Boom Lift STAFF LIFT

Products - Diesel Telescopic Boom Lift
  • Gradeability
    45%
  • Machine Weight
    7500Kg
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    TB14J
  • Minimum Order Quantity
    1 UNIT
  • Price
    （TBD）USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

16m Working Height Diesel Telescopic Boom Lift STAFF LIFT

  • 16m Working Height Diesel Telescopic Boom Lift STAFF LIFT
  • 16m Working Height Diesel Telescopic Boom Lift STAFF LIFT
  • 16m Working Height Diesel Telescopic Boom Lift STAFF LIFT
Get Price Contact Now

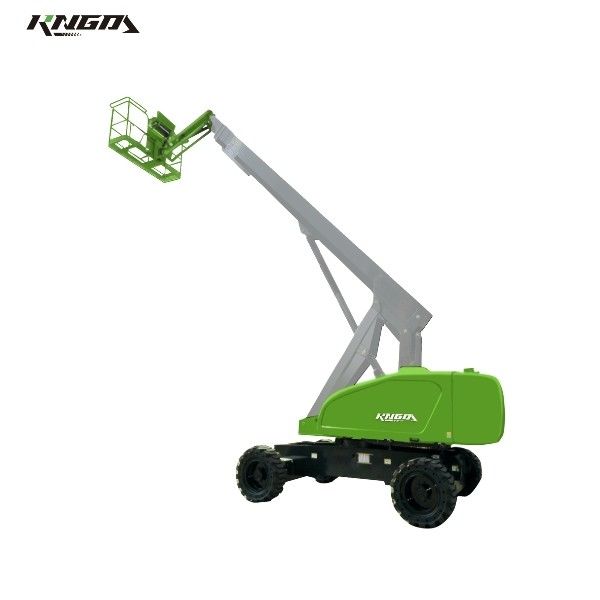

Diesel Telescopic Boom Lift Maximum Working Height 16m







Product Features



1. The small-size diesel telescopic boom lift is a compact and versatile lifting equipment.

2. It has a working height of 15.0m, making it suitable for a wide range of tasks.

3. Powered by a reliable diesel engine, it offers excellent performance and durability.

4. Its small size allows it to manoeuvre in narrow spaces and various work environments.

5. It boasts outstanding corrosion resistance and safety features.

6. This small diesel Telescopic Boom Lift is a reliable, efficient, and safe lifting solution for multiple applications.





16m Working Height Diesel Telescopic Boom Lift STAFF LIFT 0

Model TB14J
Size Metric
Maximum Working Height 16m
Maximum Platform Height 14m
Maximum Horizontal Outreach 12.6m
Platform Size 1.83X0.76m
B)Length-Stowed 8.55m
Width-Stowed 2.38m
A)Height-Stowed 2.63m
Wheelbase 2.4m
Ground Clearance(Center) 0.42m
Performance
Maximum Lifting Capacity 230Kg
Maximum Platform Occupancy 2 ppl
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 355°
Drive Speed-Stowed 5km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope 5°
Turning Radius (inside) 1.87m
Turning Radius (outside) 4.9m
Drive &Steer Mode 4X4X2Tyre
e Size 33X12-20
Power
Power Supply 36Kw@2400rpm~2600rpm
Fuel Tank Capacity 151L
Hydraulic Oil Tank Capacity 160L
Control Voltage 12V
Weight
Machine Weight 7500Kg
Standard Compliance EN280 GB25849





※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
