18m Platform Height  Diesel Telescopic Boom Lift MEWP

18m Platform Height Diesel Telescopic Boom Lift MEWP

  • Gradeability
  • Platform Size
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 UNIT
  • Price
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
  • Supply Ability

18m Platform Height Diesel Telescopic Boom Lift MEWP


Platform Height 18m Diesel Telescopic Boom Lift



Product Features


1. The small-sized diesel telescopic boom lift has a smooth and precise telescopic mechanism, allowing it to extend and retract effortlessly, providing maximum reach and flexibility.

2. The lift is equipped with various safety features, such as emergency stop buttons, safety harness attachment points, and overload protection, ensuring the safety of operators at all times.

3. With a high pass-through height, the boom lift can easily navigate obstacles and access hard-to-reach areas, making it suitable for a wide range of applications.

4. The telescopic boom allows for efficient operations in various environments, such as construction sites, warehouses, and maintenance projects.

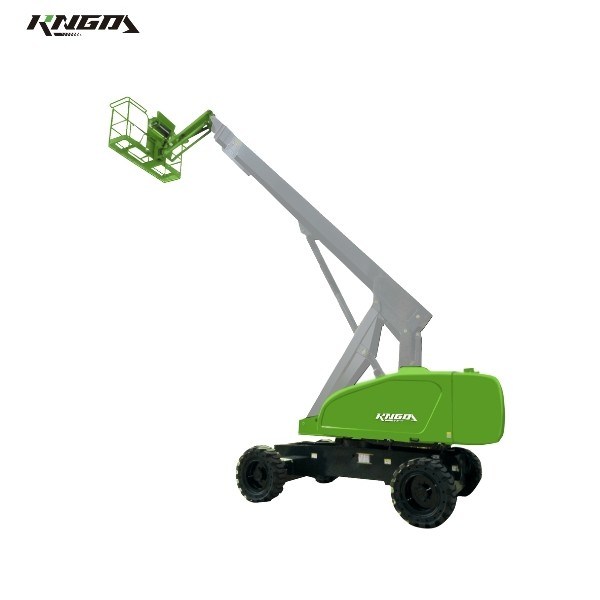

18m Platform Height  Diesel Telescopic Boom Lift MEWP 0


Model TB18J
Size Metric
Maximum Working Height 20m
Maximum Platform Height 18m
Maximum Horizontal Outreach 15m
Platform Size 2.44X0.91m
Length-Stowed 9.07m
Width-Stowed 2.42m
Height-Stowed 2.58m
Wheelbase 3m
Ground Clearance(Center) 0.37m
Maximum Lifting Capacity 480Kg
Maximum Platform Occupancy 2 pls
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 355°
Drive Speed-Stowed 5km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45°
Maximum Working Slope
Turning Radius (inside) 2.76m
Turning Radius (outside) 6.09m
Drive &Steer Mode 4X4X2
Tyre Size 33X12-20
Power Supply 36Kw@2400rpm~2600rpm
Fuel Tank Capacity 151L
Hydraulic Oil Tank Capacity 160L
Control Voltage 12V
Machine Weight 9500Kg
Standard Compliance EN280 GB25849


※ The picture and technical information may vary by the update policy, the changes will be without prior notice.




Company Profile


JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
