22m Working Height Diesel Telescopic Boom Lift Load 300kg  Hydraulic

22m Working Height Diesel Telescopic Boom Lift Load 300kg Hydraulic

  • Platform Height
    20m
  • Turntable Rotation
    360°Continuous
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    TB20J
  • Minimum Order Quantity
    1 UNIT
  • Price
    (TBD)USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

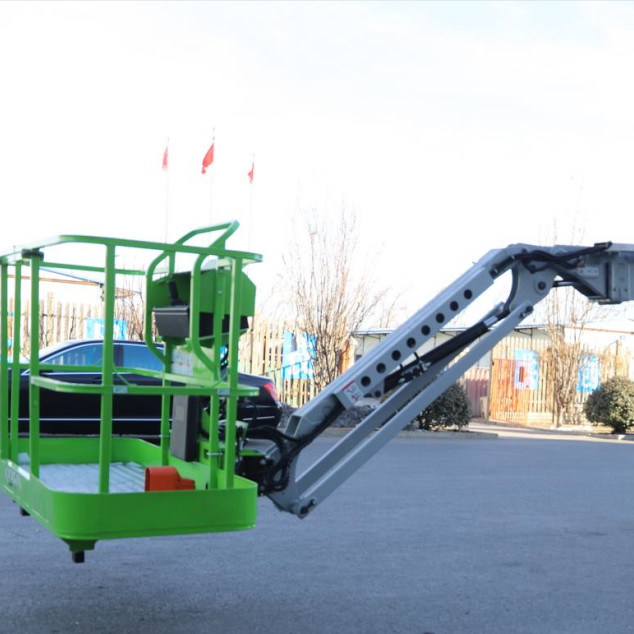

22m Working Height Diesel Telescopic Boom Lift Load 300kg Hydraulic



Diesel Telescopic Boom Lift Load Capacity 300kg Working 22m





Product Features




1. The diesel telescopic boom lift features a seamless telescopic mechanism, facilitating effortless and accurate elevation adjustments.
2. Incorporating a range of safety features, this lift guarantees the utmost protection for operators throughout its operation.
3. With its considerable maximum working height, this lift efficiently reaches elevated areas with ease and precision.
4. Versatility is a hallmark of this lift, making it adaptable to diverse work settings and tasks with its extensive utility.

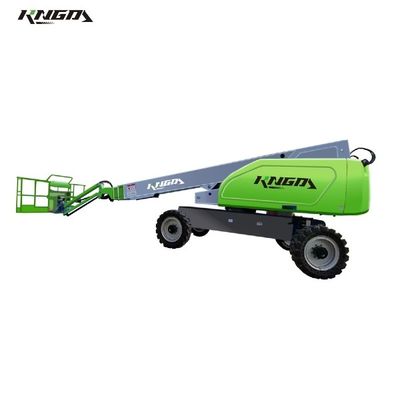

22m Working Height Diesel Telescopic Boom Lift Load 300kg  Hydraulic 0

Model TB20J
Size Metric
Maximum Working Height 21.9m
Maximum Platform Height 19.9m
Maximum Horizontal Outreach 13.7m
Platform Size 2.44X0.91m
Length-Stowed 10.06m
Width-Stowed 2.5m
Height-Stowed 2.86m
Wheelbase 2.5m
Ground Clearance(Center) 0.41m
Performance
Maximum Lifting Capacity 300Kg
Maximum Platform Occupancy 2 pls
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 360°Continuous
Drive Speed-Stowed 5Km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope
Turning Radius (inside) 2.1m
Turning Radius (outside) 5.4m
Drive &Steer Mode 4X4X2
Tyre Size 36X14-20
Power
Power Supply 36Kw@2400rpm~2600rpm
Fuel Tank Capacity 100L
Hydraulic Oil Tank Capacity 110L
Control Voltage 12V
Weight
Machine Weight 9400Kg
Standard Compliance
EN280 GB25849
