Weight 10400Kg Diesel Telescopic Boom Lift Working 23.7M ManLift

Weight 10400Kg Diesel Telescopic Boom Lift Working 23.7M ManLift

Products - Diesel Telescopic Boom Lift
  • Gradeability
    45%
  • Rotation
    360 Degrees
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    TB22J
  • Minimum Order Quantity
    1 UNIT
  • Price
    （TBD）USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

Weight 10400Kg Diesel Telescopic Boom Lift Working 23.7M ManLift

  • Weight 10400Kg Diesel Telescopic Boom Lift Working 23.7M ManLift
  • Weight 10400Kg Diesel Telescopic Boom Lift Working 23.7M ManLift
  • Weight 10400Kg Diesel Telescopic Boom Lift Working 23.7M ManLift
  • Weight 10400Kg Diesel Telescopic Boom Lift Working 23.7M ManLift
  • Weight 10400Kg Diesel Telescopic Boom Lift Working 23.7M ManLift
Get Price Contact Now

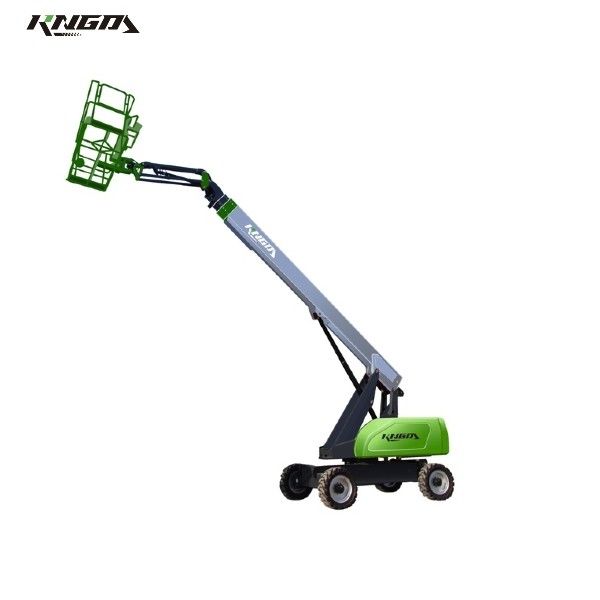

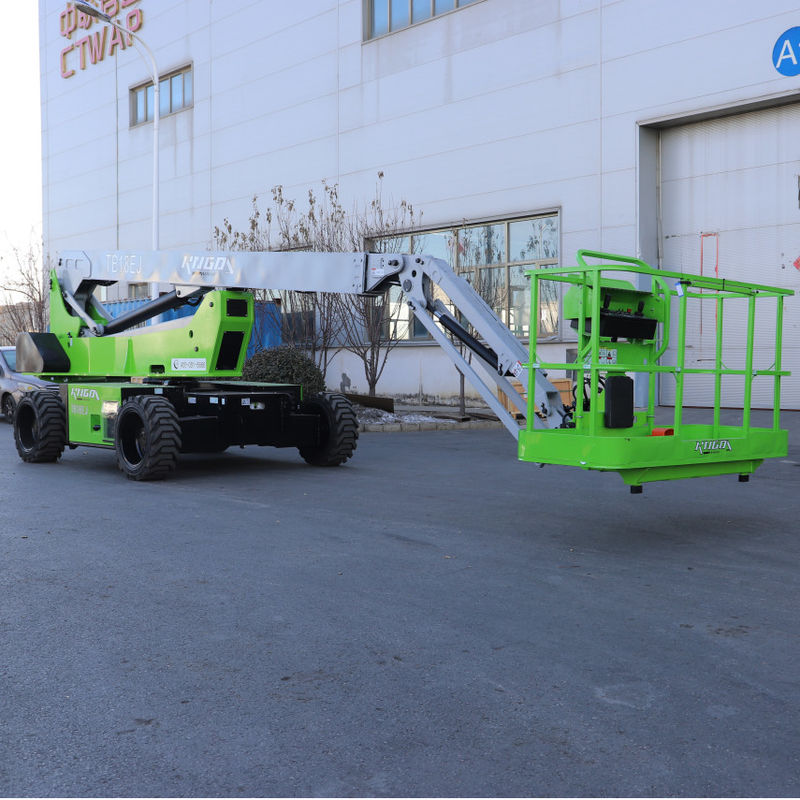

Diesel Telescopic Boom Lift Working 23.7m Weight 10400Kg





Product Features


1. With its efficient telescoping mechanism, the compact diesel telescopic boom lift facilitates seamless and accurate height adjustments.
2. Incorporating a robust array of safety features, this telescopic boom lift prioritizes operator security throughout operation.
3. Boasting an impressive working height capacity, this diesel telescopic boom lift excels in efficiently reaching elevated areas.
4. Versatile, this telescopic boom lift caters to diverse working conditions and tasks, ensuring adaptability across various environments.



Weight 10400Kg Diesel Telescopic Boom Lift Working 23.7M ManLift 0



Model TB22J
Size Metric
Maximum Working Height 23.7m
Maximum Platform Height 21.7m
Maximum Horizontal Outreach 15.8m
Platform Size 2.44X0.91m
Length-Stowed 9.1m
Width-Stowed 2.5m
Height-Stowed 2.85m
Wheelbase 2.5m
Ground Clearance(Center) 0.41m
Performance
Maximum Lifting Capacity 480Kg
Maximum Platform Occupancy 2 pls
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 360°Continuous
Drive Speed-Stowed 5km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope 5°
Turning Radius (inside) 2.1m
Turning Radius (outside) 5.4m
Drive &Steer Mode 4X4X2

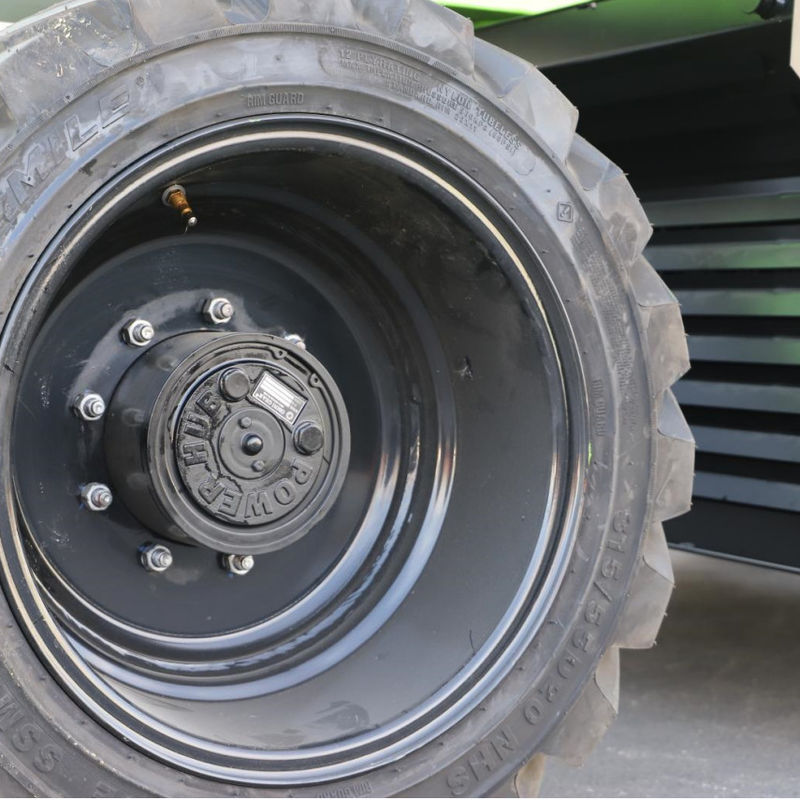

Tyre Size 36X14-20
Power
Power Supply 36Kw@2400rpm~2600rpm
Fuel Tank Capacity 100L
Hydraulic Oil Tank Capacity 110L
Control Voltage 12V
Weight
Machine Weight 10400Kg
Standard Compliance
EN280 GB25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.







Company Profile



JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
