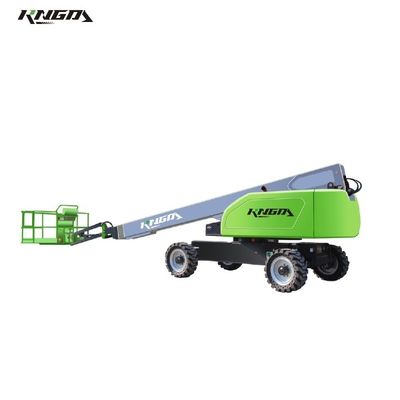

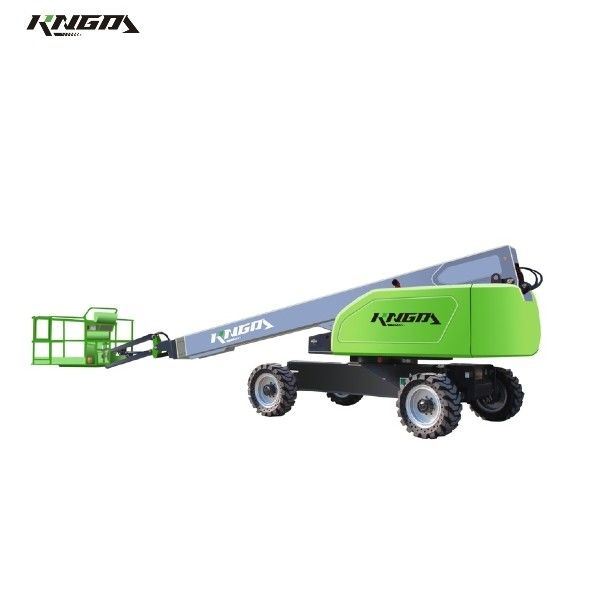

Diesel Telescopic Boom Lift 23.7m Working Height
Product Features
1. The compact diesel telescopic boom lift stands out as a multifunctional lifting marvel, brimming with an array of exceptional attributes.
2. Its seamless telescopic mechanism effortlessly extends and retracts the boom with unmatched precision and ease, setting it miles apart from conventional lifting equipment.
3. Incorporating a suite of advanced safety features, this lift sets the gold standard for operator and worker protection, leaving no room for compromise in ensuring a secure working environment.
4. With an impressive pass-through height, this lift fearlessly ventures into the most inaccessible nooks and crannies, proving its mettle in conquering even the most challenging work sites.
5. Boasting a wide-reaching working range, this lift adapts seamlessly to diverse job environments, showcasing its adaptability and versatility in the face of varying demands.
6. Renowned for its unparalleled efficiency and rock-solid reliability, this lifting solution emerges as a beacon of dependability, guaranteeing optimal performance and peace of mind for all users.
Model | TB22J |
Size | Metric |
Maximum Working Height | 23.7m |
Maximum Platform Height | 21.7m |
Maximum Horizontal Outreach | 15.8m |
Platform Size | 2.44X0.91m |
Length-Stowed | 9.1m |
Width-Stowed | 2.5m |
Height-Stowed | 2.85m |
Wheelbase | 2.5m |
Ground Clearance(Center) | 0.41m |
Performance | |
Maximum Lifting Capacity | 480Kg |
Maximum Platform Occupancy | 2 pls |
Platform Rotation | ±90° |
Vertical Jib Rotation | 135° |
Turntable Rotation | 360°Continuous |
Drive Speed-Stowed | 5km/h |
Drive Speed-Raised | 1.1Km/h |
Gradeability | 45% |
Maximum Working Slope | 5° |
Turning Radius (inside) | 2.1m |
Turning Radius (outside) | 5.4m |
Drive &Steer Mode | 4X4X2 |
Tyre Size | 36X14-20 |
Power | |
Power Supply | 36Kw@2400rpm~2600rpm |
Fuel Tank Capacity | 100L |
Hydraulic Oil Tank Capacity | 110L |
Control Voltage | 12V |
Weight | |
Machine Weight | 10400Kg |
Standard Compliance | |
EN280 GB25849 |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
