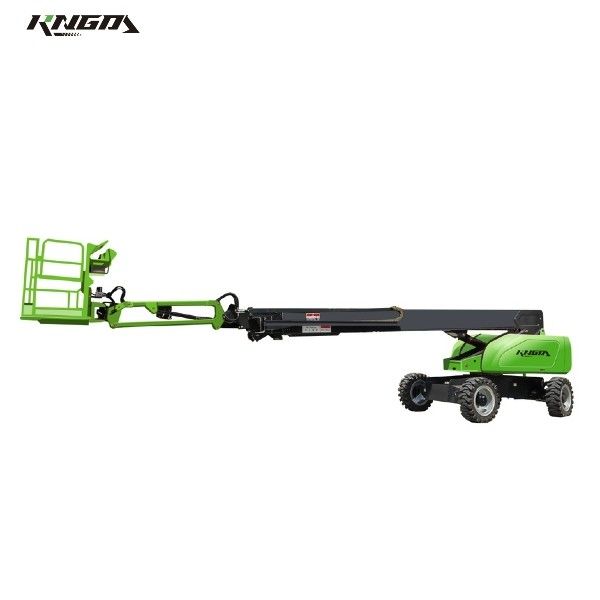

MEWP 34m Working Height Diesel Telescopic Boom Lift AWP

MEWP 34m Working Height Diesel Telescopic Boom Lift AWP

  • High Light

    34m Diesel Telescopic Boom Lift

    ,

    Diesel Telescopic Boom Lift AWP

    ,

    AWP Boom Lift

  • Drive Model
    4WD
  • Gradeability
    45%
  • Maximum Working Height
    34 M
  • Platform Rotation
    180 Degrees
  • Platform Size
    2.44 M X 0.91 M
  • Power Source
    Diesel
  • Product Type
    Telescopic Boom Lift
  • Weight
    18500 Kg
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    TB32J
  • Minimum Order Quantity
    1 UNIT
  • Price
    (TBD)USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

MEWP 34m Working Height Diesel Telescopic Boom Lift AWP



Diesel Telescopic Boom Lift Working Height 34m





Product Features

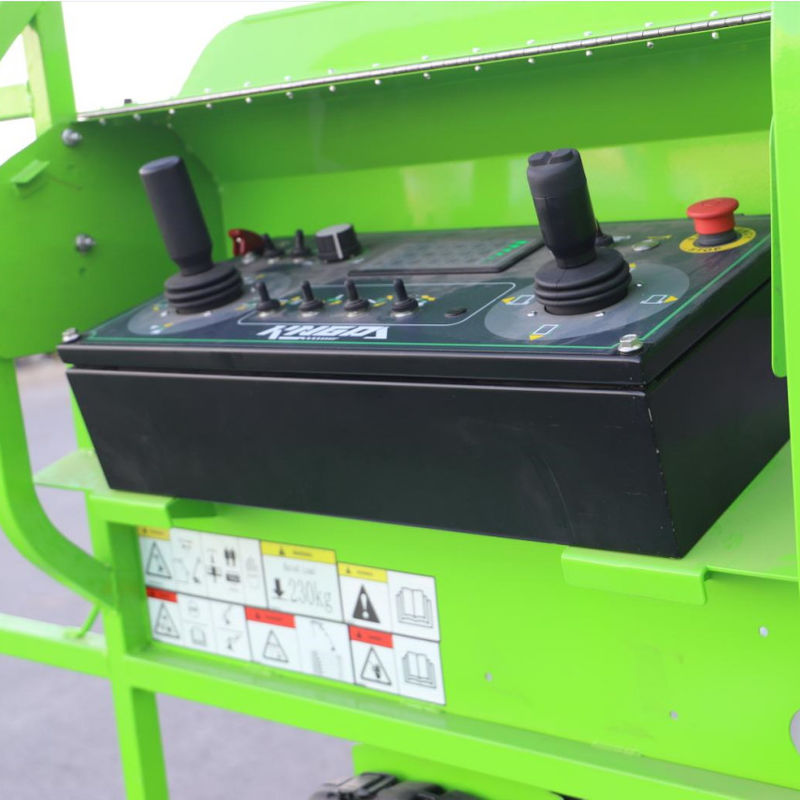

●Safety features: the small-sized diesel telescopic boom lift is equipped with safety features such as an emergency stop button, safety harness attachment points, and non-marking tyres to ensure a secure and stable working environment.
●Stability: This lift has a sturdy base and outriggers that provide stability and support during operation, allowing for safe and efficient work at height.
●Easy maintenance.
●Wide range of working heights: making it suitable for a wide range of tasks such as construction, maintenance, and installation work.
●Efficiency: The small-sized diesel telescopic boom lift offers efficient operation with its quick setup and fast elevation speed, allowing for increased productivity on the job site.


MEWP 34m Working Height Diesel Telescopic Boom Lift AWP 0



Model TB32J
Size Metric
Maximum Working Height 34m
Maximum Platform Height 32m
Maximum Horizontal Outreach 20.6m
Platform Size 2.44X0.91m
Length-Stowed 12.6m
Width-Stowed 2.58m
Height-Stowed 2.95m
Wheelbase 3m
Ground Clearance(Center) 0.43m
Performance
Maximum Lifting Capacity 480Kg
Maximum Platform Occupancy 2 ppl
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 360°Continuous
Drive Speed-Stowed 5km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope
Turning Radius (inside) 2.57m
Turning Radius (outside) 6.11m
Drive &Steer Mode 4X4X2
Tire Size 385/65-22.5
Power
Power Supply 55Kw@2400rpm~2600rpm
Fuel Tank Capacity 151L
Hydraulic Oil Tank Capacity 160L
Control Voltage 12V
Weight
Machine Weight 18500Kg
Standard Compliance EN280 GB25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.







Company Profile




JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
