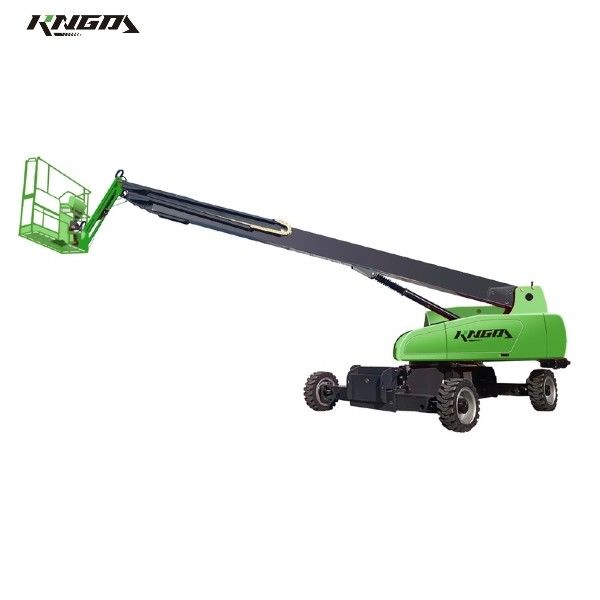

40m Working Height Diesel Telescopic Boom Lift Weight 21800kg

40m Working Height Diesel Telescopic Boom Lift Weight 21800kg

  • High Light

    40m Diesel Telescopic Boom Lift

    ,

    Diesel Telescopic Boom Lift 21800kg

    ,

    Boom Lift Weight 21800kg

  • Platform Height
    38m
  • Platform Size
    2.44X0.91m
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    TB38J
  • Minimum Order Quantity
    1 UNIT
  • Price
    (TBD)USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

40m Working Height Diesel Telescopic Boom Lift Weight 21800kg



Diesel Telescopic Boom Lift Working Height 40m Machine Weight 21800kg





Product Features


●A medium-sized diesel telescopic boom lift is a heavy-duty machine that is used for lifting people and heavy loads to high heights. It has a strong and sturdy structure with a telescopic boom that can extend and retract, allowing it to reach various heights. The lift is powered by a diesel engine, which provides the necessary power to operate the machine efficiently.
●This type of boom lift is known for its versatility and durability. It is capable of reaching high heights and has a large load capacity, making it suitable for a wide range of tasks, such as construction, maintenance, and repairs. The lift is equipped with safety features, such as stabilizers and safety harnesses, to ensure the safety of the operators.
●Overall, the medium-sized diesel telescopic boom lift is a powerful and reliable machine that is designed to handle heavy lifting tasks at high heights.

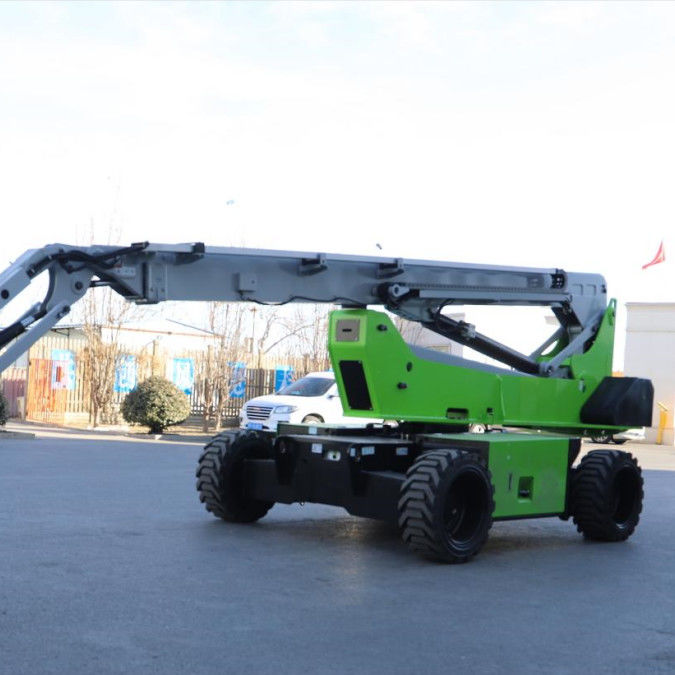

40m Working Height Diesel Telescopic Boom Lift Weight 21800kg 0

Model TB38J
Size Metric
Maximum Working Height 40.4m
Maximum Platform Height 38.4m
Maximum Horizontal Outreach 24m
Platform Size 2.44X0.91m
Length-Stowed(jib stowed/extended) not able to stow/14.1m
Width(axle retracted/extended) 2.5m/4.1m
Height-Stowed 3.08m
Wheelbase 3.96m
Ground Clearance 0.4m
Performance
Maximum Lifting Capacity/(Non-restricted) 480Kg/300Kg
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 360°Continuous
Drive Speed-Stowed 5Km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope
Turning Radius-inside(axle retracted/extended) 3.83m/2.69m
Turning Radius-outside(axle retracted/extended) 6.24m/6.5m
Drive &Steer Mode 4×4×4
Tyre Size 385/65-22.5
Power
Power Supply 55Kw@2400rpm~2600rpn
Fuel Tank Capacity 150L
Hydraulic Oil Tank Capacity 250L
Control Voltage 12V
Weight
Machine Weight 21800Kg
Standard Compliance
EN280 GB25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.







Company Profile




JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.

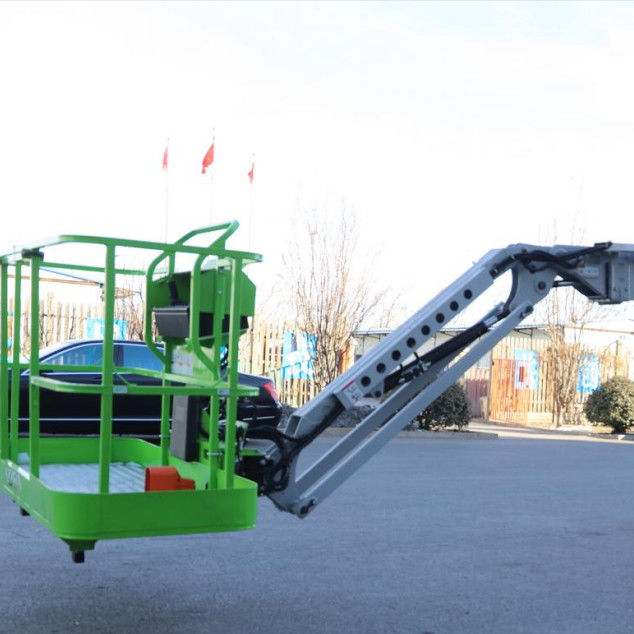

40m Working Height Diesel Telescopic Boom Lift Weight 21800kg 1
