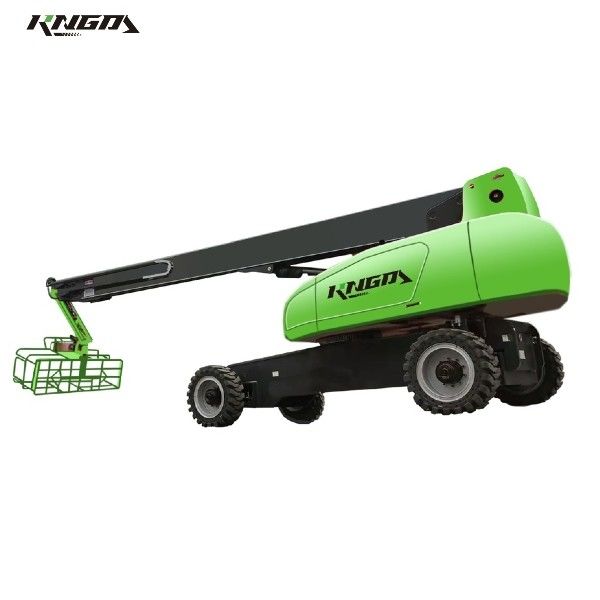

Diesel Telescopic Boom Lift Weight 22610Kg Working Height 44m
Product Features
1. Introducing the mighty diesel telescopic boom lift - a gargantuan beast of a machine designed to conquer towering heights with unparalleled strength and flexibility.
2. Unlike its puny counterparts, this colossal boom lift dwarfs the competition in size and power, roaring to life on a diet of diesel fuel that fuels its insatiable thirst for heights.
3. Equipped with a telescopic arm that stretches and contracts like a colossal metal serpent, this mammoth machine can snake its way to dizzying elevations, leaving mere mortal lifts in the dust.
4. A staple in the realms of construction, maintenance, and industry, this behemoth is the go-to choice for those who dare to dream big and reach for the sky.
5. Powered by a diesel engine that rumbles with raw power, this titan effortlessly hoists heavy loads and prowls around job sites with the grace of a mechanical predator.
6. With a robust frame that exudes reliability and performance, this colossus becomes the trusted companion of workers seeking to ascend to great heights with unwavering safety and efficiency.
Model | TB42J |
Size | Metric |
Maximum Working Height | 44m |
Maximum Platform Height | 42m |
Maximum Horizontal Outreach | 24m |

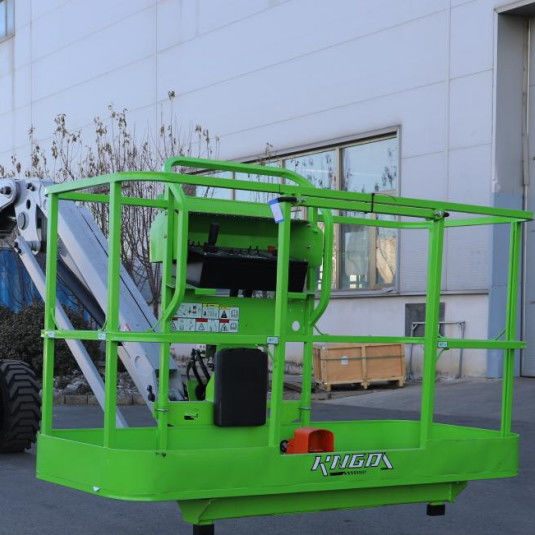

Platform Size | 2.44X0.91m |
Length-Stowed(jib stowed/extended) | 13.3m/16.2m |
Width(axle retracted/extended) | 2.5m/4.1m |
Height-Stowed | 3.1m |
Wheelbase | 3.96m |
Ground Clearance | 0.4m |
Performance | |
Maximum Lifting Capacity/(Non-restricted) | 480Kg/300Kg |
Platform Rotation | ±90° |
Vertical Jib Rotation | 135° |
Turntable Rotation | 360°Continuous |
Drive Speed-Stowed | 4.4Km/h |
Drive Speed-Raised | 1.1Km/h |
Gradeability | 45% |
Maximum Working Slope | 5° |
Turning Radius-inside(axle retracted/extended) | 3.83m/2.69m |
Turning Radius-outside(axle retracted/extended) | 6.24m/6.5m |
Drive &Steer Mode | 4×4×4 |

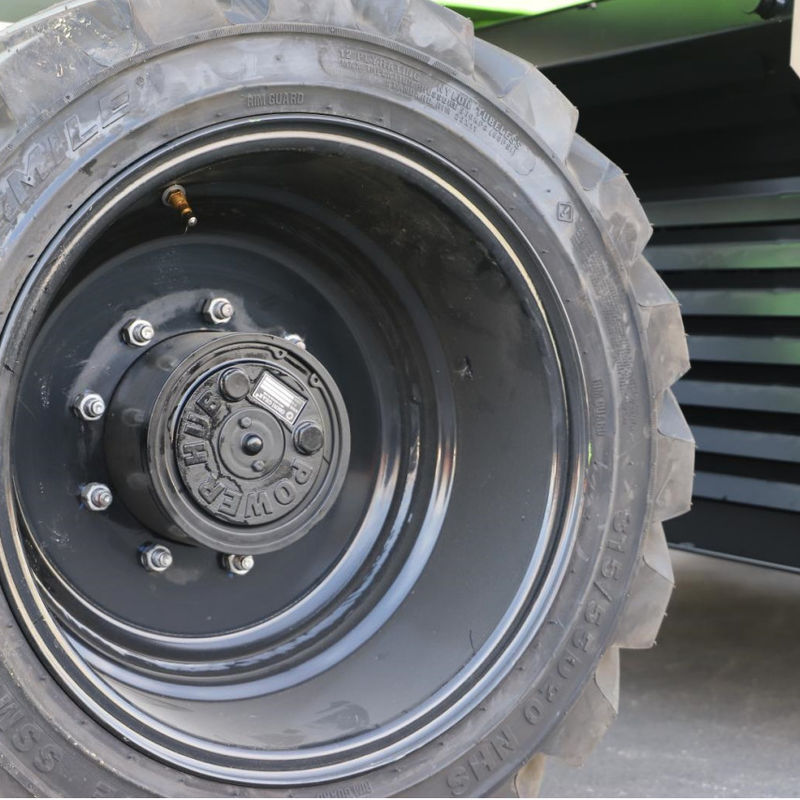

Tire Size | 385/65-22.5 |
Power | |
Power Supply | 55Kw@2400rpm~2600rpn |
Fuel Tank Capacity | 151L |
Hydraulic Oil Tank Capacity | 250L |
Control Voltage | 12V |
Weight | |
Machine Weight | 22610Kg |
Standard Compliance | |
EN280 GB25849 |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
