mobile man lift platform 46m Height Diesel Telescopic Lift 480kg
-
High Light
mobile man lift
,man lift platform 46m
,man lift platform 480kg
-
Gradeability45%
-
Platform Rotation180 Degrees
-
Place of OriginCHINA
-
Brand NameKINGDA
-
CertificationCE
-
Model NumberTB46J
-
Minimum Order Quantity1 UNIT
-
Price（TBD）USD
-
Packaging DetailsExport packing
-
Delivery Time60 Days
-
Payment TermsT/T
-
Supply AbilityNO LIMITED
mobile man lift platform 46m Height Diesel Telescopic Lift 480kg

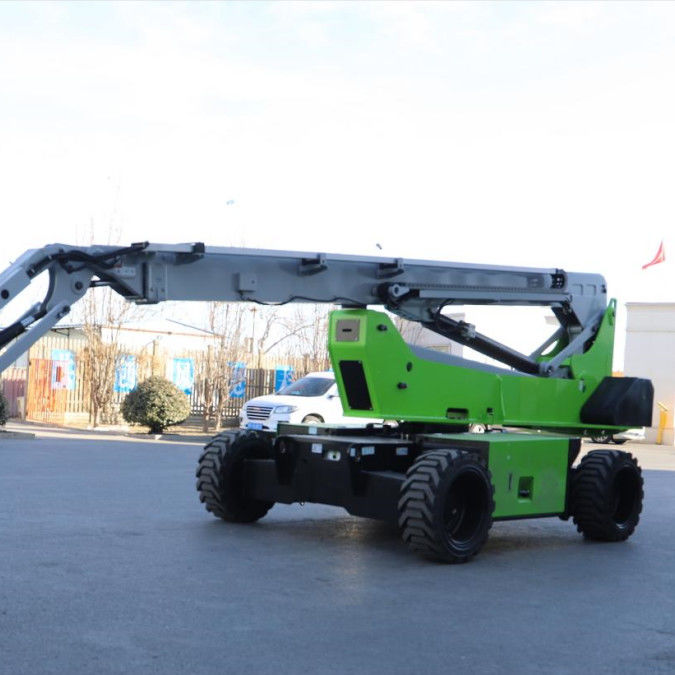

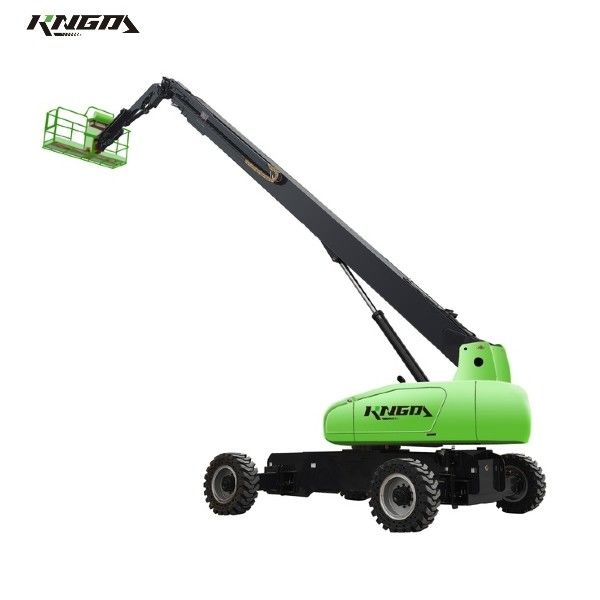

Diesel Telescopic Boom Lift Platform Height 46m
Product Features
●A Medium Large Diesel Telescopic Boom Lift is a type of heavy-duty equipment used to reach high places. It has a powerful diesel engine that provides the necessary power to lift heavy loads. The boom of the lift is telescopic, which means it can extend and retract to reach different heights.
●This type of boom lift is considered medium to large, meaning it is bigger than smaller models but not as large as the largest ones available. It is designed to handle medium to heavy loads and can reach heights that are higher than smaller lifts.
●The main characteristics of it include:
●Power: It is equipped with a diesel engine that provides ample power to lift heavy loads and handle demanding tasks.
●Load capacity: It has a higher load capacity compared to smaller lifts, making it suitable for lifting heavier materials or equipment.
●Overall, a Medium Large Size Diesel Telescopic Boom Lift is a powerful and versatile piece of equipment that is designed to handle medium to heavy loads and reach higher heights.
| Model | TB46J |
| Size | Metric |
| Maximum Working Height | 48m |
| Maximum Platform Height | 46m |
| Maximum Horizontal Outreach | 24m |
| Platform Size | 2.44X0.91m |
| Length-Stowed(jib stowed/extended) | 13.66m/17.8m |
| Width(axle retracted/extended) | 2.5m/4.21m |
| Height-Stowed | 3.14m |
| Wheelbase | 3.96m |
| Ground Clearance | 0.4m |
| Performance | |
| Maximum Lifting Capacity/(Non-restricted) | 480Kg/300Kg |
| Platform Rotation | ±90° |
| Vertical Jib Rotation | 135° |
| Turntable Rotation | 360°Continuous |
| Drive Speed-Stowed | 4.2Km/h |
| Drive Speed-Raised | 1.1Km/h |
| Gradeability | 45% |
| Maximum Working Slope | 5° |
| Turning Radius-inside(axle retracted/extended) | 3.83m/2.69m |
| Turning Radius-outside(axle retracted/extended) | 6.24m/6.5m |
| Drive &Steer Mode | 4×4×4 |

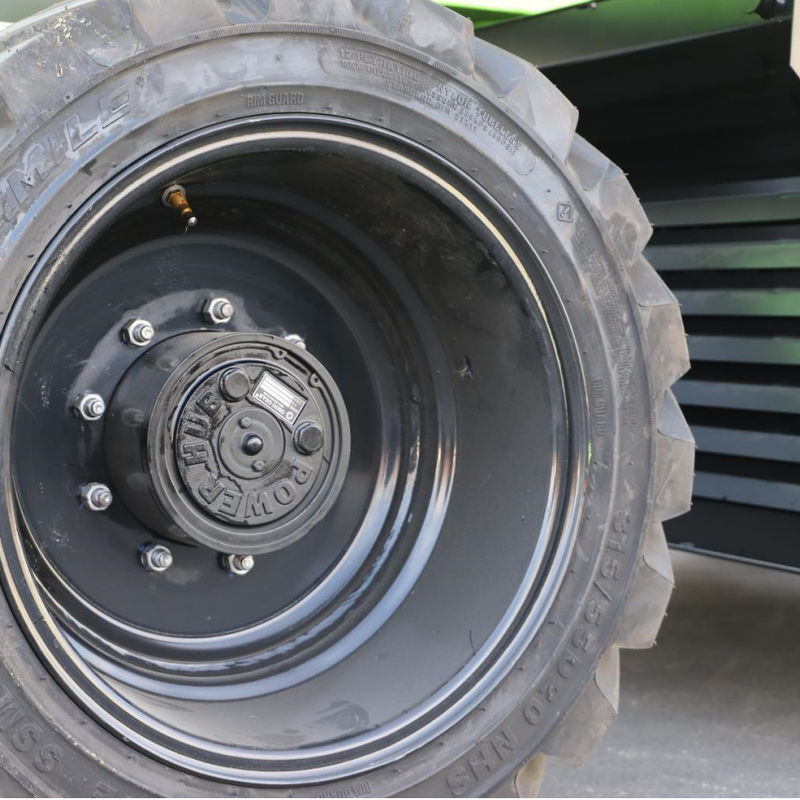

| Tire Size | 445/65-24 |
| Power | |
| Power Supply | 55Kw@2400rpm~2600rpn |
| Fuel Tank Capacity | 151L |
| Hydraulic Oil Tank Capacity | 250L |
| Control Voltage | 12V |
| Weight | |
| Machine Weight | 23110Kg |
| Standard Compliance | EN280 GB25849 |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
