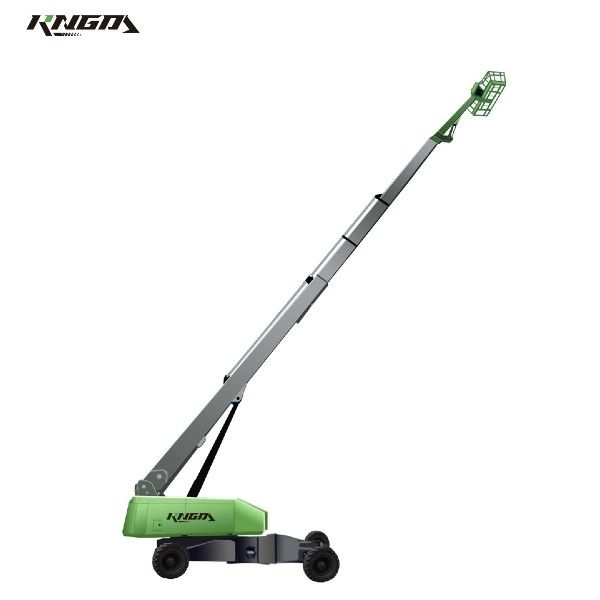

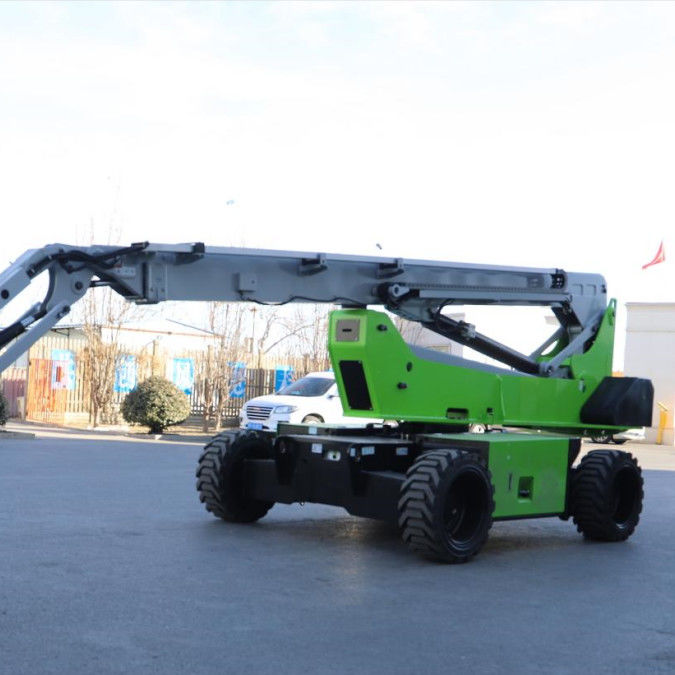

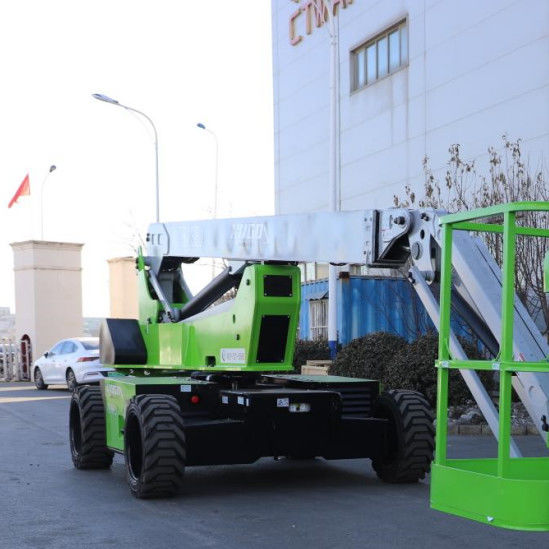

28500Kg Diesel Telescopic Boom Lift 63m

28500Kg Diesel Telescopic Boom Lift 63m

  • High Light

    Diesel Telescopic Boom Lift 63m


    28500Kg Diesel Telescopic Boom Lift


    63m Boom Lift

  • Gradeability
  • Load Capacity
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 UNIT
  • Price
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
  • Supply Ability

28500Kg Diesel Telescopic Boom Lift 63m


Diesel Telescopic Boom Lift Working Height 63m Weight 28500Kg



Product Features


●A medium and large diesel telescopic boom lift is a type of heavy-duty equipment. It can extend and retract its boom, allowing it to reach different heights and distances.
●Diesel-powered: Instead of being powered by electricity, this boom lift runs on diesel fuel. This provides it with a strong and reliable source of power, making it suitable for outdoor use or in areas with limited access to electricity.
●Telescopic boom: The boom of this lift can be extended and retracted, allowing it to reach various heights and distances. This flexibility enables it to access hard-to-reach areas or work on different levels of a building.
●Stability and manoeuvrability: Despite its larger size, this boom lift is designed to be stable and easy to manoeuvre. It is equipped with sturdy outriggers to provide stability while working at height, and it has a rotating base that allows it to move in different directions.
●Overall, a medium and large diesel telescopic boom lift combines power, flexibility, and stability to perform heavy-duty tasks at elevated heights.


28500Kg Diesel Telescopic Boom Lift 63m 0


Model TB61J
Size Metric
Maximum Working Height 63m
Maximum Platform Height 61m
Maximum Horizontal Outreach 26m

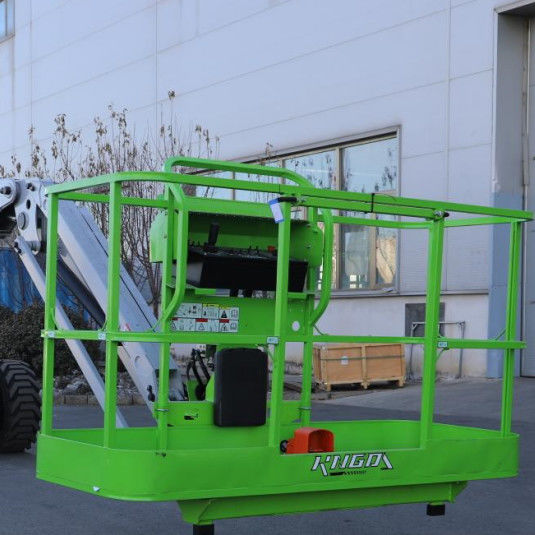

Platform Size 2.44X0.91m
Length-Stowed(jib stowed/extended) 16.1m/21.65m
Width(axle retracted/extended) 2.5m/5.1m
Height-Stowed 3.4m
Wheelbase 5.6m
Ground Clearance 0.38m
Maximum Lifting Capacity/(Non-restricted) 480Kg/300Kg
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 360°Continuous
Drive Speed-Stowed 4.2Km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope
Turning Radius-inside(axle retracted/extended) 7.6m/2.69m
Turning Radius-outside(axle retracted/extended) 10m/7.07m
Drive &Steer Mode 4×4×4

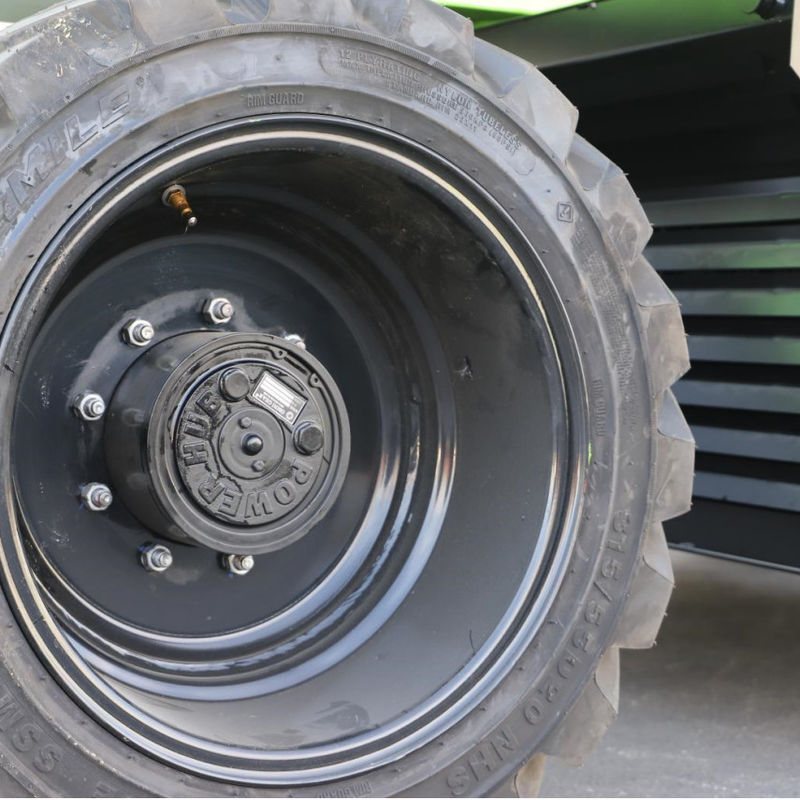

Tyre Size 445/65-24
Power Supply 74Kw@2200rpm
Fuel Tank Capacity 200L
Hydraulic Oil Tank Capacity 300L

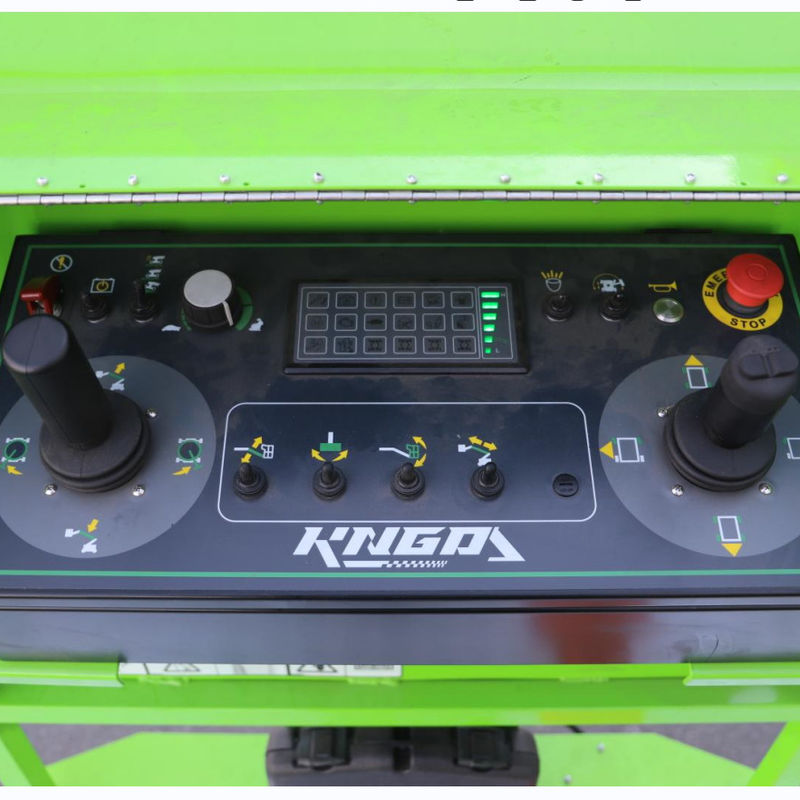

Control Voltage 24V
Machine Weight 28500Kg
Standard Compliance
EN280 GB25849


※ The picture and technical information may vary by the update policy, the changes will be without prior notice.



Company Profile


JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin City, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
